GBPC2510W T0G

Overview

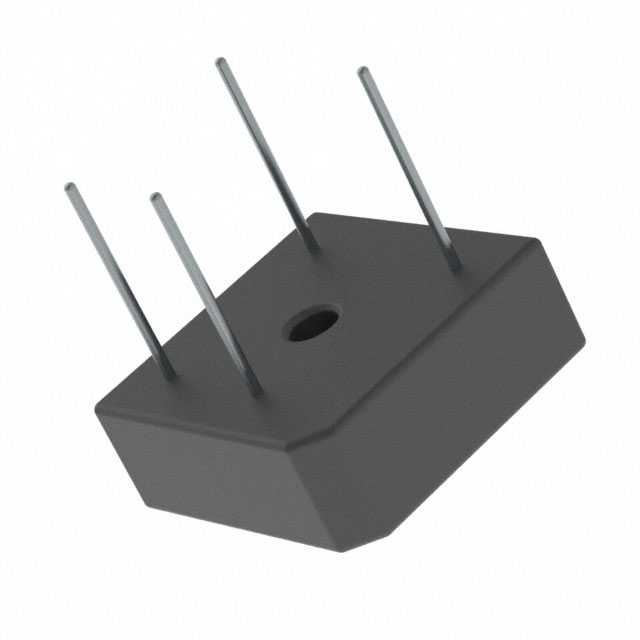

The Taiwan Semiconductor GBPC2510W T0G is a single-phase bridge rectifier from the GBPC25 series, rated for an average forward current of 25A and a repetitive peak reverse voltage of 1000V. It utilizes a wire-structure GBPC-W package with matte tin-plated leads. The device features glass passivated chip junctions and an integrally molded heatsink to ensure low thermal resistance. Electrical specifications include a maximum instantaneous forward voltage drop of 1.1V at 12.5A and a typical reverse leakage current of less than 5µA at rated voltage. It supports a peak forward surge current of 300A under standard JEDEC testing conditions.

Feature Summary

• Glass passivated chip junction construction
• Integrally molded heatsink for efficient heat dissipation
• Wire structure terminal configuration

Applications

• Switching mode power supply (SMPS)
• AC to DC converter

Procurement Notes

Verify that the specific ordering code matches the required GBPC-W wire structure variant rather than the standard or parallel terminal versions. Confirm compliance with RoHS directives and UL recognition file E-326243 requirements during procurement. Ensure the component meets JESD 201 class 1A whisker test standards for long-term reliability in final assembly processes.

Selection Notes

Select this component when a 25A continuous current rating and 1000V blocking capability are required within a wire-lead configuration. The GBPC-W package is suitable for applications needing through-hole mounting with extended leads. Verify that the 1.5°C/W junction-to-case thermal resistance aligns with the system's cooling design constraints.

Part Context

This part belongs to the GBPC15, 25, and 35 series of standard bridge rectifiers manufactured by Taiwan Semiconductor Corporation. The series covers current ratings from 15A to 35A and voltage ratings from 50V to 1000V. The GBPC2510W specifically denotes the 25A current rating, 1000V voltage rating, and wire-style terminal arrangement.

Replacement Considerations

Cross-reference with other manufacturers offering GBPC2510 variants in the GBPC-W package. Ensure equivalent electrical parameters, particularly the 1.1V forward voltage drop and 300A surge current capability, are maintained. Verify mechanical compatibility of the wire-lead spacing and overall dimensions.
