GBPC602-E4/51

Overview

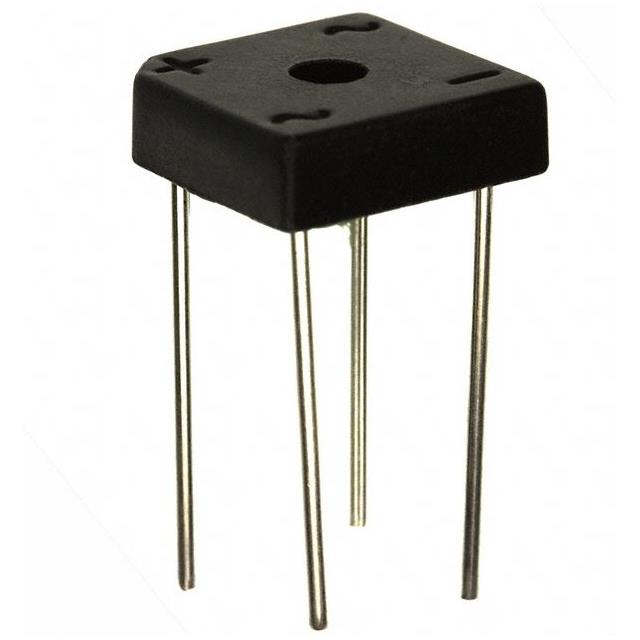

The GBPC602-E4/51 is a glass-passivated single-phase bridge rectifier from the Vishay GBPC6 series. It features a maximum repetitive peak reverse voltage (VRRM) of 200 V and a maximum average forward rectified output current (IF(AV)) of 6.0 A at a case temperature of 50 °C. The device supports a peak forward surge current (IFSM) of 175 A and exhibits a typical DC reverse current (IR) of less than 0.5 μA. Operating within a junction temperature range of -55 to +150 °C, it utilizes a GBPC6 through-hole package with silver-plated leads.

Feature Summary

• Glass passivation provides long-term stability and protection against mechanical stresses.
• High surge current capability ensures robustness during transient load conditions.
• Low leakage current characteristics contribute to improved circuit efficiency.
• UL recognition file number E54214 confirms compliance with safety standards.

Applications

• AC/DC bridge full wave rectification for power supplies
• Home appliances
• Office equipment
• Industrial automation applications

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number GBPC602-E4/51 with official Vishay documentation. Confirm that the ordering suffix indicates RoHS compliance and commercial grade status. Ensure procurement channels provide valid traceability records to prevent counterfeit components in production environments.

Selection Notes

Select this component when a 200 V blocking voltage and 6 A continuous current rating are required for general-purpose rectification. Evaluate thermal management requirements based on the specified thermal resistance values. Verify that the operating ambient temperature allows for adequate heat dissipation without exceeding the maximum junction temperature limits defined in the datasheet.

Part Context

This component belongs to the Vishay GBPC6 series of single-phase bridge rectifiers. The series encompasses multiple voltage ratings ranging from 50 V to 1000 V, sharing identical physical dimensions and pin configurations. The GBPC602 variant specifically addresses applications requiring a 200 V reverse voltage rating while maintaining the standard 6 A current capacity of the family.

Replacement Considerations

Compatible substitutes include other GBPC6 series variants such as GBPC604 or GBPC606 if higher voltage ratings are acceptable. Cross-manufacturer equivalents must match the 6 A current rating, 200 V minimum reverse voltage, and GBPC6 package footprint to ensure direct interchangeability.
