Product Detailed Parameters

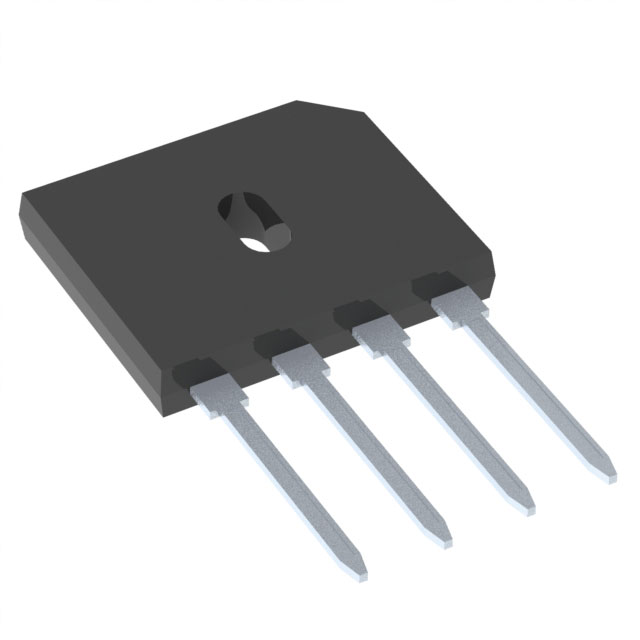

- Description：BRIDGE RECT 1PHASE 600V 10A GBU
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tube
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：600 V
- Current - Average Rectified (Io)：10:00 AM
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 10 A
- Current - Reverse Leakage @ Vr：5 µA @ 600 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：4-ESIP, GBU
- Supplier Device Package：GBU
- Grade：-
- Qualification：-
Download product information
Overview
The GBU1005-K is a standard bridge rectifier manufactured by Taiwan Semiconductor Corporation, rated for an average forward current of 10 A and a repetitive peak reverse voltage of 600 V. It utilizes the GBU through-hole package with matte tin-plated leads. The device supports a maximum junction temperature of 150 °C and offers a surge peak forward current capability of 200 A at 8.3 ms. Electrical characteristics include a typical forward voltage of 0.98 V at 10 A and 25 °C, with a maximum reverse current of 5 μA at 25 °C.
Feature Summary
- Glass passivated chip junction construction
- High surge current capability
- Ideal for printed circuit board mounting
Applications
- Switching mode power supply (SMPS)
- Adapters
- TV
- Monitor
Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm electrical ratings and compliance status before procurement. Ensure that the ordering code matches the required voltage rating within the series specifications. Confirm packaging details such as tube quantities directly with authorized distributors or the manufacturer to align with production requirements.
Selection Notes
Select the GBU1005-K when a 600 V reverse voltage rating is required for 10 A applications. Consider thermal resistance values for heat dissipation planning in enclosed designs. Verify compatibility with PCB footprint dimensions provided in the datasheet outline. Evaluate operating temperature ranges to ensure performance stability under expected load conditions.
Part Context
This component belongs to the GBU100x-K series from Taiwan Semiconductor, which includes variants with different voltage ratings up to 1000 V. The series shares common mechanical features and package styles while differing in peak reverse voltage specifications. It is designed for general-purpose rectification in consumer electronics and power supply applications.
Replacement Considerations
Cross-reference with other GBU1005-K equivalents from different manufacturers ensuring identical 10 A current and 600 V voltage ratings. Verify pinout compatibility and physical dimensions to fit existing PCB layouts. Check thermal performance metrics to maintain similar junction temperatures under equivalent loads.
