GKI06185

$0.96

Description：MOSFET N-CH 60V 7A 8DFN
Series：-
Mfr：Sanken Electric USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3ea6cfa4235f Category: Single FETs, MOSFETs Brand: Sanken Electric USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GKI06185 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Sanken Electric USA Inc.. Its product description is MOSFET N-CH 60V 7A 8DFN. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for GKI06185

Description：MOSFET N-CH 60V 7A 8DFN
Series：-
Mfr：Sanken Electric USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：15mOhm @ 15.5A, 10V
Vgs(th) (Max) @ Id：2.5V @ 350µA
Gate Charge (Qg) (Max) @ Vgs：23.7 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1510 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：3.1W (Ta), 46W (Tc)
Operating Temperature：150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

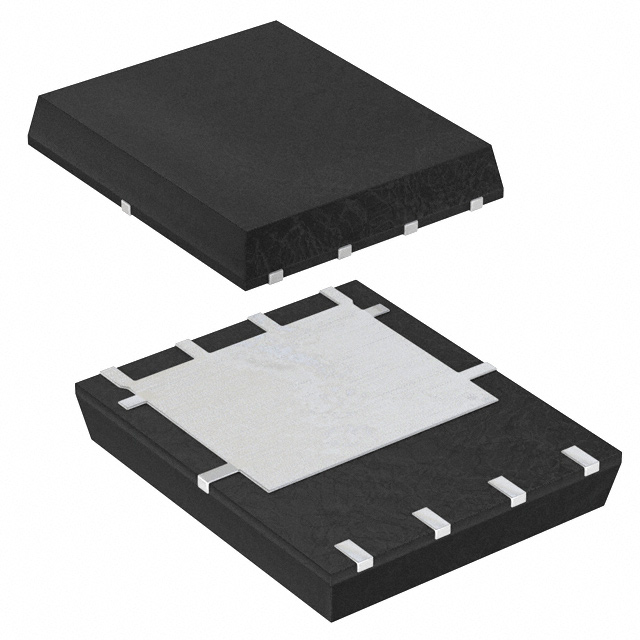

Supplier Device Package：8-DFN (5x6)
Package / Case：8-PowerTDFN

Single FETs, MOSFETs datasheet and documents for GKI06185

GKI06185

Single FETs, MOSFETs Overview

The GKI06185 is a 60 V N-channel Trench Power MOSFET manufactured by Sanken Electric USA Inc. It features a maximum continuous drain current of 26 A at 25 °C case temperature and a low on-resistance (RDS(ON)) of 16.3 mΩ max at VGS = 10 V. The device supports 4.5 V gate drive with a total gate charge (Qg) of 9.1 nC, enabling high-speed switching. Packaged in a DFN 5 × 6 footprint, it operates within a junction temperature range up to 150 °C.

Single FETs, MOSFETs Feature Summary

Low RDS(ON) for efficient power conduction
High speed switching capability
Capable of 4.5 V gate drive
RoHS compliant construction

Single FETs, MOSFETs Applications

DC-DC converters
Synchronous Rectification
Power Supplies

Single FETs, MOSFETs Procurement Notes

Verify the component datasheet revision status before integration, as the document indicates this part is not recommended for new designs. Confirm that the specific lot markings and package dimensions align with your PCB layout requirements. Ensure all handling procedures strictly follow the electrostatic discharge precautions outlined in the manufacturer's operating manual.

Single FETs, MOSFETs Selection Notes

Select this component when a 60 V rating and low on-resistance are required for synchronous rectification or DC-DC conversion applications. Consider the thermal resistance characteristics and the DFN 5 × 6 package size for space-constrained designs. Evaluate the 4.5 V gate drive compatibility against your controller's output voltage levels to ensure optimal switching performance.

Single FETs, MOSFETs Part Context

This N-channel MOSFET belongs to Sanken Electric's trench technology lineup, designed for general-purpose electronic equipment. It utilizes a metal composite structure optimized for low on-resistance and fast switching speeds. The device is intended for use in power supplies and converters where efficiency and compact packaging are prioritized over long-term availability.
