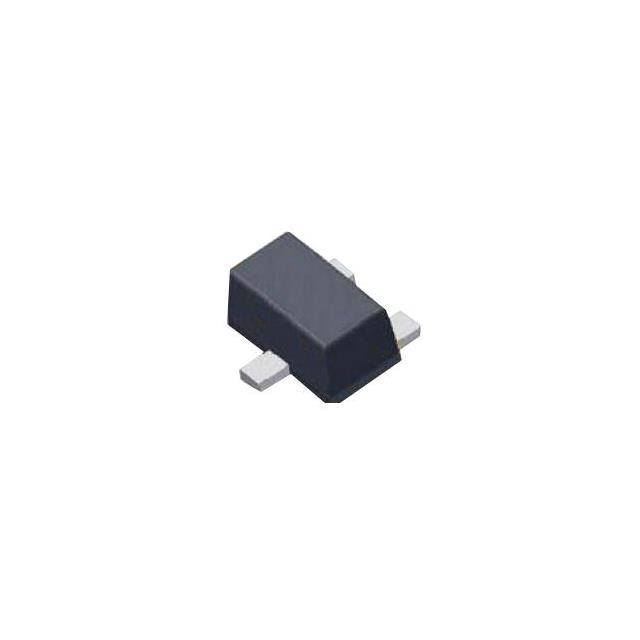

GSBAT54AT is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is DIODE ARR SCHOT 30V 200MA SOT523. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for GSBAT54AT
- Description：DIODE ARR SCHOT 30V 200MA SOT523
- Series：GSBAT54xT
- Mfr：Good-Ark Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Configuration：1 Pair Common Anode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：30 V
- Current - Average Rectified (Io) (per Diode)：200mA
- Voltage - Forward (Vf) (Max) @ If：500 mV @ 30 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：5 ns
- Current - Reverse Leakage @ Vr：2 µA @ 25 V
- Operating Temperature - Junction：-65°C ~ 150°C
- Mounting Type：Surface Mount
- Package / Case：SOT-523
- Supplier Device Package：SOT-523
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for GSBAT54AT
Diode Arrays Overview
The GSBAT54AT is a Schottky barrier diode from the GSBAT54xT series manufactured by Good-Ark Semiconductor. It features a dual cathode common anode configuration housed in an SOT-523 surface mount package. The device supports a peak repetitive reverse voltage of 30 V and a continuous forward current of 200 mA. Key electrical characteristics include a maximum reverse current of 2 uA at 25 V, a capacitance of 10 pF, and a reverse recovery time of 5 ns. Operating junction temperature ranges from -55 to +125 °C.
Diode Arrays Feature Summary
- Low forward voltage drop for reduced conduction losses
- Fast switching capability with ultra-low reverse recovery time
- Ultra-small SOT-523 surface mount package design
Diode Arrays Applications
- General purpose switching applications
Diode Arrays Procurement Notes
Verify the specific suffix 'AT' corresponds to the Dual Cathode Common Anode configuration when ordering. Confirm the tape and reel packaging quantity matches project requirements. Ensure thermal management aligns with the specified junction-to-air resistance values during high-current operation.
Diode Arrays Selection Notes
Select this component for circuits requiring fast rectification or clamping in space-constrained designs. The SOT-523 package offers a compact footprint suitable for portable electronics. Evaluate the 30 V reverse voltage rating against peak circuit transients to ensure adequate safety margins.
Diode Arrays Part Context
This part belongs to the GSBAT54xT series, which includes variants like GSBAT54T, GSBAT54CT, and GSBAT54ST. All share the same SOT-523 package but differ in internal pinning and diode configurations. The AT variant specifically provides a dual cathode common anode topology.
Diode Arrays Replacement Considerations
Cross-reference BAT54AT equivalents from other manufacturers such as Micro Commercial Components (BAT54AT-TP) or NXP Semiconductors. Verify that substitute parts match the SOT-523 package dimensions and electrical ratings before integration.
