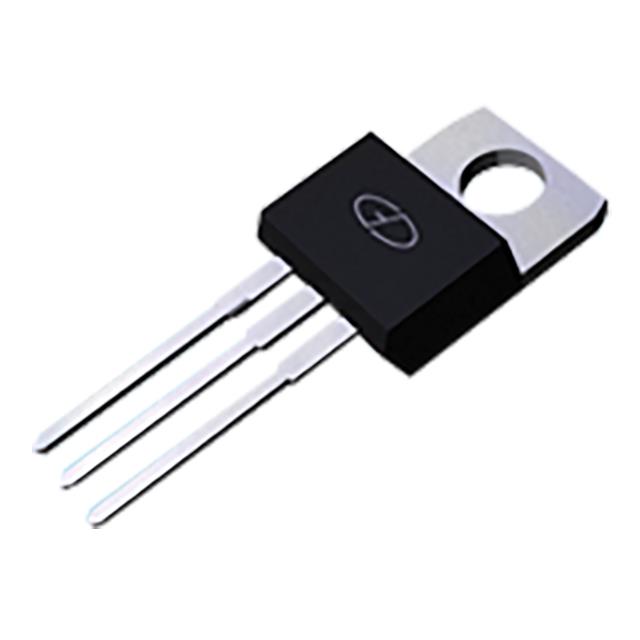

GSFH06100 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is MOSFET, N-CH, SINGLE, 100A, 60V,. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for GSFH06100
- Description：MOSFET, N-CH, SINGLE, 100A, 60V,
- Series：-
- Mfr：Good-Ark Semiconductor
- Package：Tube
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：10V
- Rds On (Max) @ Id, Vgs：6.5mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id：4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：85 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：4800 pF @ 30 V
- FET Feature：-
- Power Dissipation (Max)：170W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Through Hole
- Supplier Device Package：TO-220-3
- Package / Case：TO-220-3
Single FETs, MOSFETs datasheet and documents for GSFH06100
Single FETs, MOSFETs Overview
The GSFH06100 is a 60V N-Channel MOSFET in a TO-220 package. It features a maximum drain-source voltage of 60V and a continuous drain current of 100A at 25°C, dropping to 32A at 100°C case temperature. The device exhibits a typical on-resistance of 5.7mΩ at VGS=10V and ID=40A, with a maximum of 6.5mΩ. Key electrical parameters include a gate threshold voltage of 2V to 4V, a total gate charge of 85nC, and a pulsed drain current capability of 320A. The component supports an operating junction temperature range from -55°C to +175°C.
Single FETs, MOSFETs Feature Summary
- Utilizes advanced MOSFET process technology for high cell density
- Optimized for low on-resistance combined with low gate charge
- Designed for fast switching and reverse body recovery performance
Single FETs, MOSFETs Applications
- High efficiency switched mode power supplies
- General purpose power switching applications
Single FETs, MOSFETs Procurement Notes
Verify the specific datasheet revision against the manufacturer's official documentation before finalizing design specifications. Confirm that thermal management solutions align with the stated junction-to-case thermal resistance values under actual operating conditions. Ensure sourcing channels provide authentic components matching the Good-Ark Semiconductor manufacturing standards.
Single FETs, MOSFETs Selection Notes
Select this component when a 60V rating and high current handling capacity are required for power conversion circuits. The low on-resistance minimizes conduction losses, while the fast switching characteristics support higher frequency operation. Evaluate thermal requirements carefully, as the continuous current rating decreases significantly at elevated case temperatures.
Single FETs, MOSFETs Part Context
This part belongs to the family of 60V N-Channel MOSFETs manufactured by Good-Ark Semiconductor. These devices are designed to replace older generation silicon technologies in power electronics. The TO-220 form factor provides robust mechanical mounting and efficient heat dissipation capabilities suitable for through-hole assembly processes.
Single FETs, MOSFETs Replacement Considerations
Consult official cross-reference lists for verified substitutes. Ensure any replacement maintains compatible pinout configurations and meets or exceeds the original voltage and current ratings.
