GSID600A120S4B1

Overview

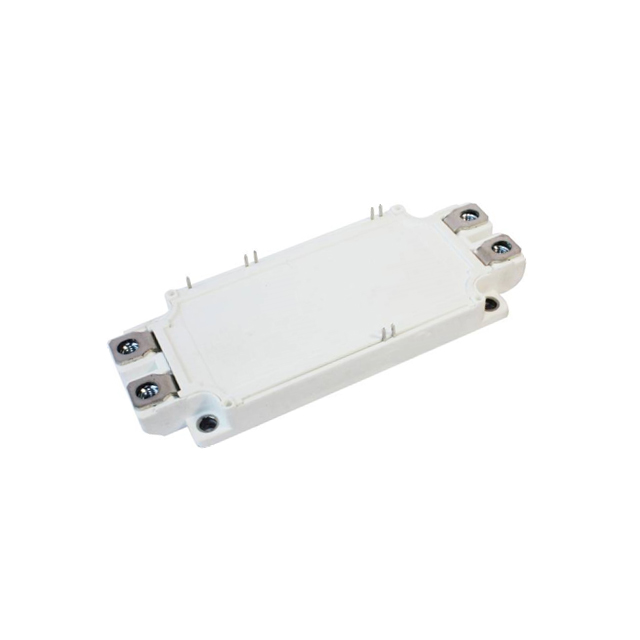

The GSID600A120S4B1 is a high-power IGBT module manufactured by SemiQ. It features a 1200V collector-emitter voltage rating and supports a continuous collector current of 1130A. The device is designed for chassis mounting and offers a maximum power dissipation of 3060W. This component utilizes Silicon-based IGBT technology, suitable for demanding industrial applications requiring robust power handling capabilities.

Feature Summary

• High current capacity with 1130A continuous collector current
• Robust thermal performance supporting up to 3060W power dissipation
• Designed for secure chassis mounting configurations

Applications

• Industrial motor drives
• Power conversion systems
• Inverter circuits

Procurement Notes

Verify the specific datasheet version and electrical characteristics against the manufacturer's official documentation before integration. Confirm mechanical dimensions and mounting requirements align with the target system design. Ensure thermal management solutions meet the specified power dissipation limits for reliable operation under load conditions.

Selection Notes

Select this module for applications requiring high voltage isolation and substantial current handling. Evaluate thermal resistance and cooling infrastructure compatibility. Consider switching frequency limitations inherent to silicon IGBT technology compared to wide-bandgap alternatives when designing the gate drive circuitry.

Part Context

This part belongs to SemiQ's discrete and power modules portfolio. It represents a standard silicon IGBT solution within their lineup, distinct from their silicon carbide MOSFET offerings. The GCMX series indicates different technology nodes and packaging styles available from the same manufacturer.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
