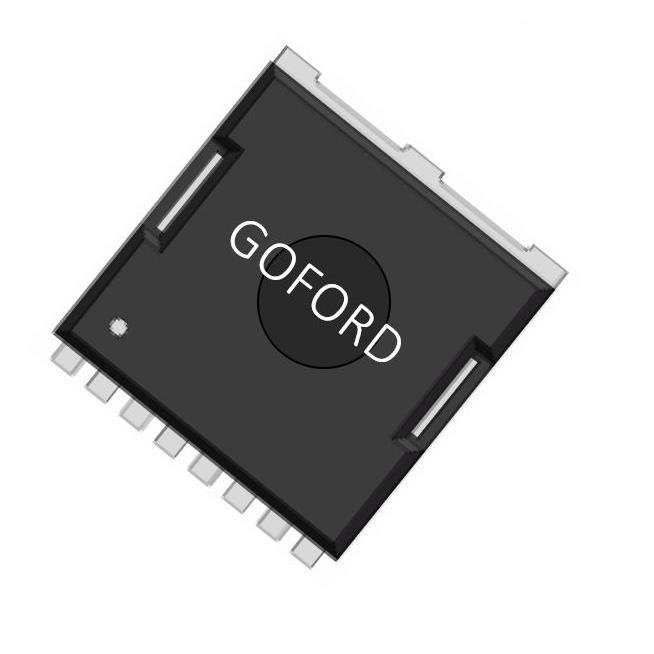

GT015N06TL

$3.27

Description：MOSFET N-CH 60V 350A 350W 1M(MA
Series：-
Mfr：Goford Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c0f33493feb9 Category: Single FETs, MOSFETs Brand: Goford Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GT015N06TL is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Goford Semiconductor. Its product description is MOSFET N-CH 60V 350A 350W 1M(MA. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for GT015N06TL

Description：MOSFET N-CH 60V 350A 350W 1M(MA
Series：-
Mfr：Goford Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：350A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：1mOhm @ 80A, 10V
Vgs(th) (Max) @ Id：2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：152 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：10694 pF @ 30 V
FET Feature：-
Power Dissipation (Max)：350W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：TOLL-8L
Package / Case：8-PowerSFN

Single FETs, MOSFETs datasheet and documents for GT015N06TL

GT015N06TL

Single FETs, MOSFETs Overview

The GT015N06TL is an N-Channel Enhancement Mode Power MOSFET manufactured by Goford Semiconductor. It utilizes advanced trench technology to achieve low on-resistance and gate charge. The device features a 60V drain-source voltage rating and supports a continuous drain current of 350A at 25°C case temperature. Key electrical parameters include a maximum RDS(on) of 1.0mΩ at VGS=10V and 1.3mΩ at VGS=4.5V. It is housed in a TOLL-8L package with a junction-to-case thermal resistance of 0.36°C/W.

Single FETs, MOSFETs Feature Summary

Advanced trench technology for optimized conduction and switching performance
High power density design suitable for compact layouts
Dual-side cooling capability within the TOLL-8L package

Single FETs, MOSFETs Applications

Power switch circuits
DC/DC converters

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct packaging quantity and reel specifications. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer, as these details are not included in the technical datasheet.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring high current handling and low conduction losses. Evaluate the thermal resistance and safe operating area relative to the system's heat dissipation capabilities. Ensure the gate drive voltage meets the requirements for optimal RDS(on) performance.

Single FETs, MOSFETs Part Context

This part belongs to Goford Semiconductor's lineup of power MOSFETs designed for industrial and consumer electronics. The TOLL-8L package is engineered for superior thermal management compared to traditional packages, allowing for higher power density in space-constrained designs.
