HCT7000M is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists TT Electronics/Optek Technology. Its product description is MOSFET N-CH 60V 200MA 3SMD. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for HCT7000M
- Description：MOSFET N-CH 60V 200MA 3SMD
- Series：-
- Mfr：TT Electronics/Optek Technology
- Package：Bulk,Bulk
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：200mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On)：10V
- Rds On (Max) @ Id, Vgs：5Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id：3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs：-
- Vgs (Max)：±40V
- Input Capacitance (Ciss) (Max) @ Vds：60 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：300mW (Ta)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：3-SMD
- Package / Case：3-SMD, No Lead
Single FETs, MOSFETs datasheet and documents for HCT7000M
Single FETs, MOSFETs Overview

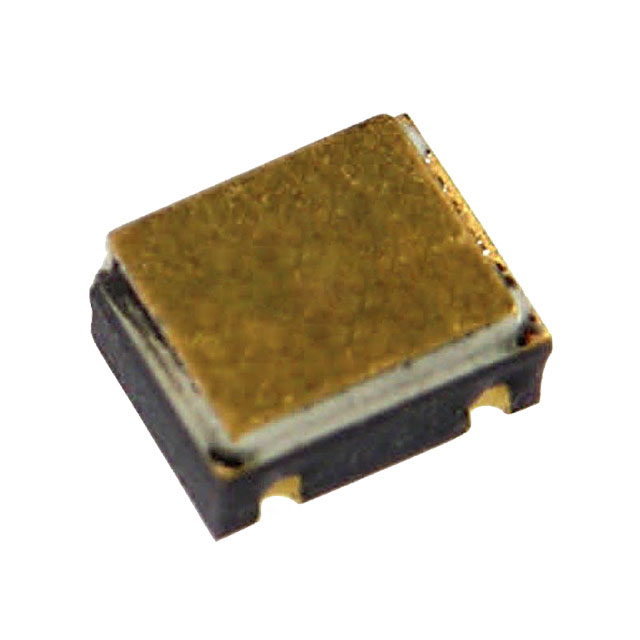

The HCT7000M is an N-channel enhancement mode MOSFET chip housed in a 3-pin ceramic LCC package. It features a drain-source voltage of 60V and a continuous drain current of 200mA. The device exhibits a gate threshold voltage range of 0.8V to 3.0V at 1mA, with a maximum on-resistance of 5Ω at VGS=10V. Input capacitance is 60pF. Power dissipation reaches 300mW at 25°C ambient temperature. Operating temperatures span from -55°C to +150°C junction.
Single FETs, MOSFETs Feature Summary
- Ultra-small surface mount ceramic LCC package
- Pin-out compatible with most SOT23 plastic packages
- High performance enhancement mode operation
Single FETs, MOSFETs Applications
- Small servo motor control
- Power MOSFET gate drives
- Relay drivers
- High speed line drivers
- Power supplies
Single FETs, MOSFETs Procurement Notes
Verify the specific suffix for required screening levels. Standard units are commercial grade. Military variants (MTX) require MIL-PRF-19500 compliance confirmation. Ensure thermal management meets the specified resistance values for your mounting method. Check datasheet revisions for updated electrical limits before finalizing designs.
Single FETs, MOSFETs Selection Notes
Select this component when space constraints require a footprint matching standard SOT23 plastic MOSFETs but higher reliability is needed. The ceramic package supports wider operating temperatures compared to typical plastic equivalents. Verify that the 60V rating exceeds peak circuit voltages. Confirm drive voltage compatibility with the 0.8V to 3.0V threshold range for efficient switching.
Single FETs, MOSFETs Part Context
This part belongs to the HCT7000 series of N-channel enhancement mode MOS transistors manufactured by TT Electronics/Optek Technology. The series includes military screened variants like the HCT7000MTX. These devices are designed as direct replacements for JEDEC 2N7000 specifications while offering superior packaging options for harsh environments.
Single FETs, MOSFETs Replacement Considerations
The datasheet states electrical characteristics are similar to the JEDEC 2N7000. Pin-out matches most SOT23 MOSFETs. No other specific substitute part numbers are listed in the provided documentation.
