HER3006PT

Diode Arrays Overview

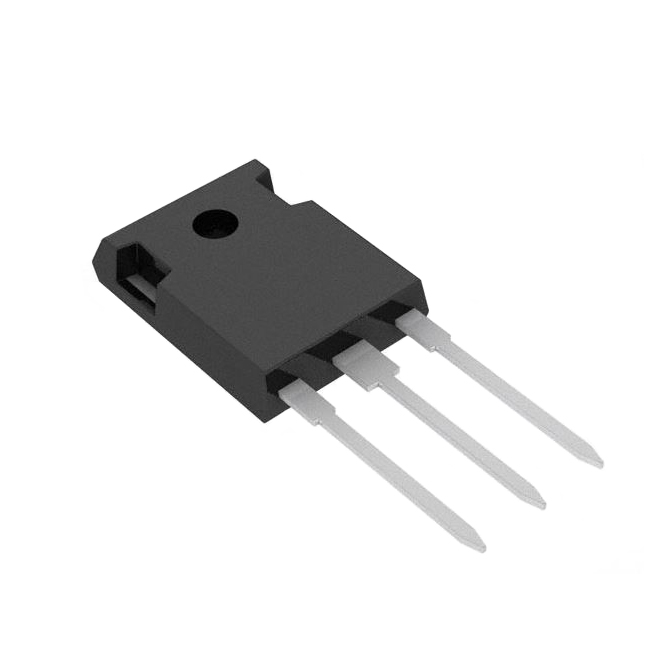

The HER3006PT is a glass-passivated high-efficiency rectifier diode manufactured by Taiwan Semiconductor. It features a common cathode configuration with two silicon elements housed in a TO-247AD (TO-3P) plastic package. The device supports a maximum repetitive peak reverse voltage of 600V and an average forward rectified current of 30A. Key electrical parameters include a maximum non-repetitive peak forward surge current of 300A, a maximum forward voltage of 1.5V, and an operating junction temperature range from -55°C to +150°C.

Diode Arrays Feature Summary

• Superfast recovery time combined with high voltage capability for efficient switching
• Low forward voltage and high current capability to minimize conduction losses
• Low thermal resistance design for effective heat dissipation
• UL Recognized component ensuring compliance with safety standards

Diode Arrays Applications

• High efficiency power supply circuits
• DC-to-DC converter modules
• General purpose rectification in industrial equipment

Diode Arrays Procurement Notes

Verify the specific manufacturer datasheet to confirm exact pinout orientation and mechanical dimensions before integration. Ensure the selected variant matches the required voltage and current ratings for the target application. Check for RoHS compliance documentation if environmental regulations apply. Confirm package type compatibility with existing PCB footprints or heatsinking solutions.

Diode Arrays Selection Notes

Select this component for applications requiring robust high-current handling with low forward voltage drop. The TO-247AD package facilitates direct mounting to heatsinks for improved thermal management. Consider the superfast recovery characteristics when designing circuits with high-frequency switching requirements. Verify that the 600V reverse voltage rating exceeds the peak inverse voltage present in the circuit.

Diode Arrays Part Context

This part belongs to the HER series of glass-passivated high-efficiency rectifiers produced by Taiwan Semiconductor. The series offers various voltage ratings while maintaining consistent current capabilities and package styles. These diodes are designed to replace standard fast recovery rectifiers where lower power loss and higher efficiency are critical performance factors.

Diode Arrays Replacement Considerations

Direct substitutes within the same series include HER3001PT through HER3009PT, which share identical current and package specifications but differ in reverse voltage ratings. Ensure the replacement part's voltage rating meets or exceeds the original circuit requirements.
