HMC-C088

Overview

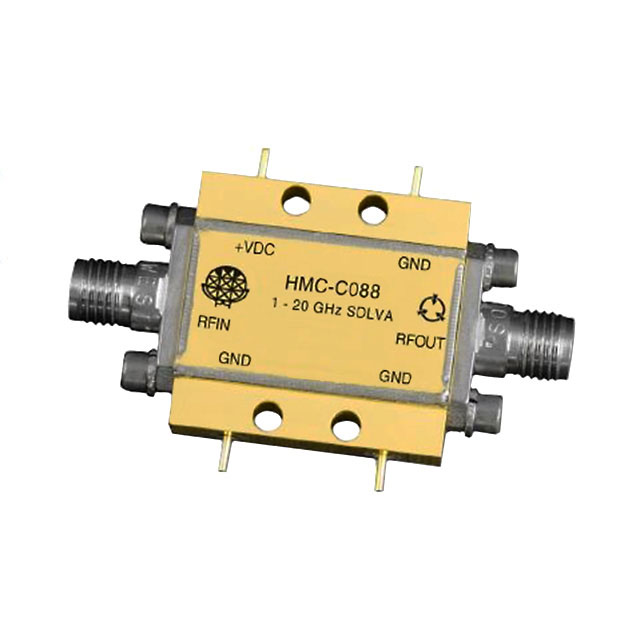

The HMC-C088 is a Successive Detection Log Video Amplifier (SDLVA) module manufactured by Analog Devices Inc. It operates within a frequency range of 1 GHz to 20 GHz and provides a logarithmic dynamic range of 59 dB. The device requires a single 12 V power supply for operation. It functions as an RF amplifier designed for radar applications. The module supports an operating temperature range from -55°C to +85°C. It is supplied in bulk packaging with SMA connectors.

Feature Summary

• Successive detection log video amplifier architecture
• Wideband operation covering 1 to 20 GHz
• High dynamic logging range capability
• Field replaceable SMA connector interface

Applications

• Radar signal processing systems
• Electronic warfare receivers
• Spectrum analysis front ends
• Signal detection and measurement equipment

Procurement Notes

Verify component authenticity through authorized Analog Devices channels or certified distributors. Confirm the specific revision level matches system requirements. Check current availability status as supply may be limited. Ensure environmental compliance documentation aligns with project regulations. Validate connector integrity upon receipt.

Selection Notes

Select this module when wideband logarithmic amplification is required for frequencies up to 20 GHz. Consider the 59 dB dynamic range for high-precision signal detection tasks. Evaluate the 12 V power requirement against available system rails. Assess thermal management needs for the specified operating temperature range. Verify mechanical fit for SMA connector mounting.

Part Context

This component belongs to the HMC series of RF modules from Analog Devices. It is categorized under wireless and RF modules, specifically for radar applications. The part represents a specialized integrated solution combining amplification and detection functions. It serves as a complete functional block rather than a discrete semiconductor die.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Cross-reference functionality with other Analog Devices SDLVA modules if necessary. Verify compatibility with existing board layouts and connector types before considering alternatives.
