Product Detailed Parameters
- Description：IGBT MODULE 1700V IPM MIPAQP-4
- Series：-
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 65°C (TA)
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1700 V
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

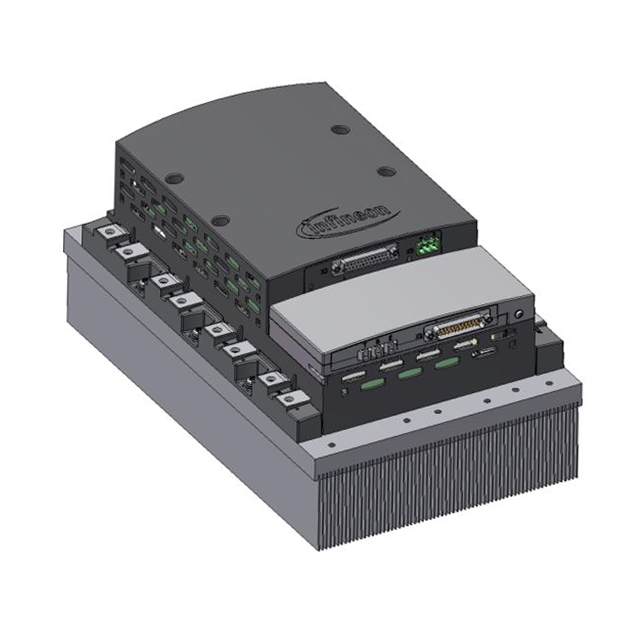

The IFF2400P17AE4BPSA1 is a half-bridge intelligent power module (IPM) designed for voltages up to 690 VRMS. It integrates IGBT4 technology with an integrated chip current of 2400 A and voltage rating of 1700 V. The rated output current is 650 ARMS at VDC = 1100 V, VAC = 690 VRMS, cos(ϕ) = 0.85, fsw = 3000 Hz, and Tinlet = 25°C. Collector-emitter saturation voltage (Vce sat) is 1.95 V typ at IC = 2400 A, Tvj = 25°C. Turn-on energy loss (Eon) is 730 mJ typ under the same conditions. Thermal resistance junction-to-ambient (Rthja) for IGBT is 0.0619 K/W per switch at 550 m³/h airflow. Auxiliary voltage ranges from 19.2 V to 28.3 V.
Feature Summary
- Integrated current, voltage, and temperature measurement sensors
- Real-time junction temperature simulation capability
- Smart protection features including over-current and over-voltage shutdown
- Modbus interface for communication
Applications
- Energy Storage Systems
- Smart Grid Applications
- Wind Power Generation
- Industrial Drives
- Solar Inverters
Procurement Notes
Verify component authenticity through authorized Infineon channels or certified distributors. Confirm RoHS compliance status and check for obsolescence notices as this part may be discontinued. Ensure proper handling procedures are followed due to high-power semiconductor sensitivity.
Selection Notes
Evaluate thermal management requirements based on 550 m³/h airflow specifications. Verify auxiliary power supply compatibility within the 19.2 V to 28.3 V range. Consider insulation test voltage requirements of 3.4 kVRMS for system design integration.
Part Context
This IPM belongs to Infineon's high-power intelligent module family utilizing IGBT4 technology. It combines power switching with integrated control electronics for simplified system design in medium to high-power industrial applications requiring precise monitoring and protection.
Replacement Considerations
Check for updated IGBT4 series modules with similar current ratings. Verify mechanical dimensions and pinout compatibility before substitution. Consult official replacement guides for end-of-life notifications.
