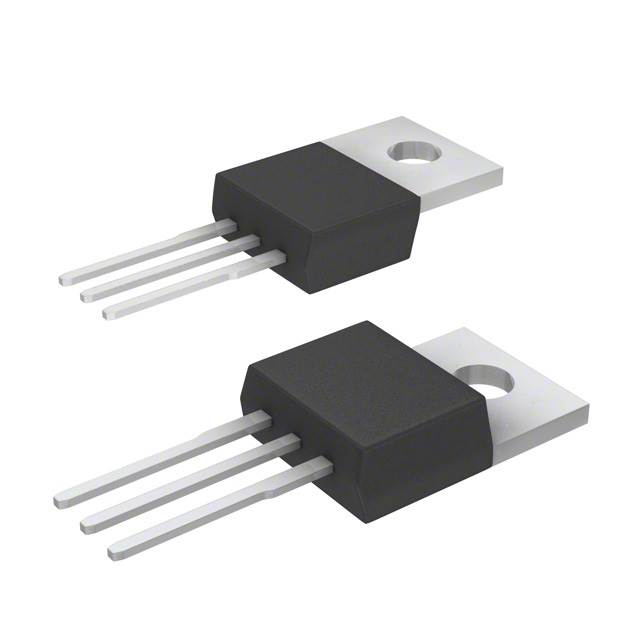

IGP20N65F5XKSA1

$2.41

Description：IGBT TRENCH 650V 42A TO220-3
Series：TrenchStop™

SKU:9f7af5490c4f Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH 650V 42A TO220-3
Series：TrenchStop™
Mfr：Infineon Technologies
Package：Tube
IGBT Type：Trench
Voltage - Collector Emitter Breakdown (Max)：650 V
Current - Collector (Ic) (Max)：42 A
Current - Collector Pulsed (Icm)：60 A
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 20A
Power - Max：125 W
Switching Energy：160µJ (on), 60µJ (off)
Input Type：Standard
Gate Charge：48 nC
Td (on/off) @ 25°C：20ns/165ns
Test Condition：400V, 10A, 32Ohm, 15V
Reverse Recovery Time (trr)：-
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-220-3
Supplier Device Package：PG-TO220-3
Grade：-
Qualification：-

Download product information

IGP20N65F5XKSA1

Overview

The IGP20N65F5 is a high-speed fifth-generation IGBT utilizing TRENCHSTOP™ 5 technology. It features a collector-emitter voltage of 650 V and a continuous collector current of 20 A at 25°C, with a maximum junction temperature of 175°C. The device operates in the PG-TO220-3 package with a saturation voltage of 1.6 V at 25°C. Key electrical parameters include a gate charge of 48 nC, turn-off energy of 0.06 mJ, and turn-on energy of 0.16 mJ under standard test conditions.

Feature Summary

High-speed switching performance optimized for hard-switching and resonant topologies
Low gate charge (Qg) to minimize drive power requirements
Qualified according to JEDEC standards for industrial target applications
Lead-free plating compliant with RoHS directives

Applications

Solar converters
Uninterruptible power supplies
Welding converters
Mid to high range switching frequency converters

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to ensure correct packaging and tape-and-reel specifications. Confirm that the component meets all required environmental certifications and lead-free standards before finalizing procurement orders.

Selection Notes

Select this component for designs requiring high efficiency in hard-switching or resonant topologies. Ensure the thermal management system supports a maximum junction temperature of 175°C and consider the low gate charge for efficient driver selection.

Part Context

This part belongs to the High Speed 5 FAST IGBT series within Infineon's TRENCHSTOP™ 5 technology portfolio. It is designed as an industrial power control device offering best-in-class efficiency compared to previous generations.

Replacement Considerations

Consult official Infineon cross-reference documents for verified substitutes. Do not assume functional equivalence with other 650V IGBTs without verifying switching characteristics and thermal ratings.
