IKA15N65ET6XKSA2

$1.22

Description：IGBT TRENCH FS 650V 17A TO220-3
Series：TrenchStop™

SKU:15b036c7354d Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH FS 650V 17A TO220-3
Series：TrenchStop™
Mfr：Infineon Technologies
Package：Tube
IGBT Type：Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)：650 V
Current - Collector (Ic) (Max)：17 A
Current - Collector Pulsed (Icm)：57.5 A
Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 11.5A
Power - Max：45 W
Switching Energy：230µJ (on), 110µJ (off)
Input Type：Standard
Gate Charge：37 nC
Td (on/off) @ 25°C：30ns/117ns
Test Condition：400V, 11.5A, 47Ohm, 15V
Reverse Recovery Time (trr)：69 ns
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole

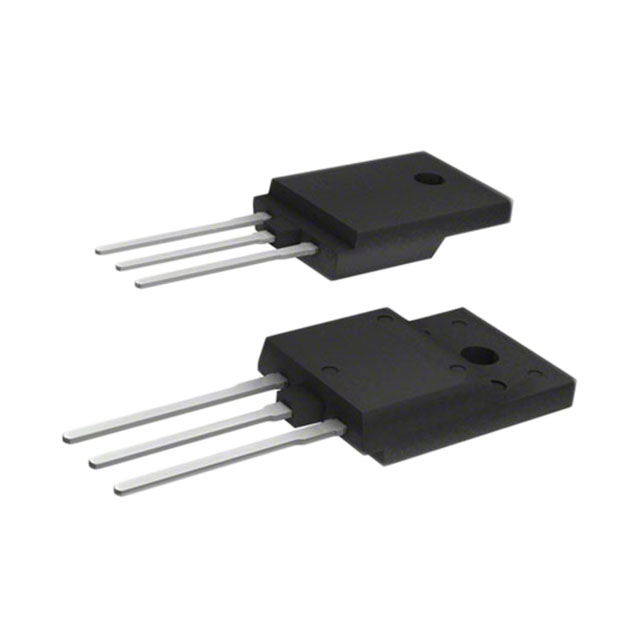

Package / Case：TO-220-3 Full Pack
Supplier Device Package：PG-TO220-3-FP
Grade：-
Qualification：-

Download product information

IKA15N65ET6XKSA2

Overview

The IKA15N65ET6XKSA2 is a TRENCHSTOP™ IGBT6 single transistor with an integrated antiparallel Rapid diode, housed in a PG-TO220-3 FP package. It features a collector-emitter voltage of 650 V and a continuous collector current of 34 A at 25°C case temperature. The device exhibits a typical saturation voltage of 1.5 V and supports a maximum junction temperature of 175°C. Key electrical parameters include a gate charge of 37 nC, short-circuit withstand time of 3 µs, and thermal resistance from junction to case of 4.3 K/W for the IGBT.

Feature Summary

TRENCHSTOP™ IGBT6 technology providing low saturation voltage and positive temperature coefficient
Integrated soft, fast recovery antiparallel Rapid diode
High ruggedness with 3 µs short-circuit withstand capability
Very tight parameter distribution ensuring consistent performance

Applications

General purpose drives (GPD)
Air conditioning systems
Major home appliances
Small home appliances

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm exact packaging and marking details. Ensure compliance with JEDEC qualification standards for industrial applications. Confirm that the component meets RoHS requirements and Pb-free lead plating specifications before integration into designs.

Selection Notes

Select this component for applications requiring high reliability and tight parameter distribution. The positive temperature coefficient aids in parallel operation. Consider the 3 µs short-circuit withstand time for robust protection schemes. Evaluate thermal management needs based on the specified junction-to-case thermal resistance values.

Part Context

This part belongs to the TRENCHSTOP™ IGBT6 family, designed for general-purpose switching applications. It combines advanced trench technology with a field-stop structure to optimize conduction and switching losses. The integrated diode enhances system efficiency by reducing reverse recovery charges compared to standard fast recovery diodes.

Replacement Considerations

Check datasheets for alternative IGBTs with similar voltage ratings and current capabilities. Verify pinout compatibility and thermal resistance values. Ensure replacement devices meet the same short-circuit withstand time and switching frequency requirements for the intended application.
