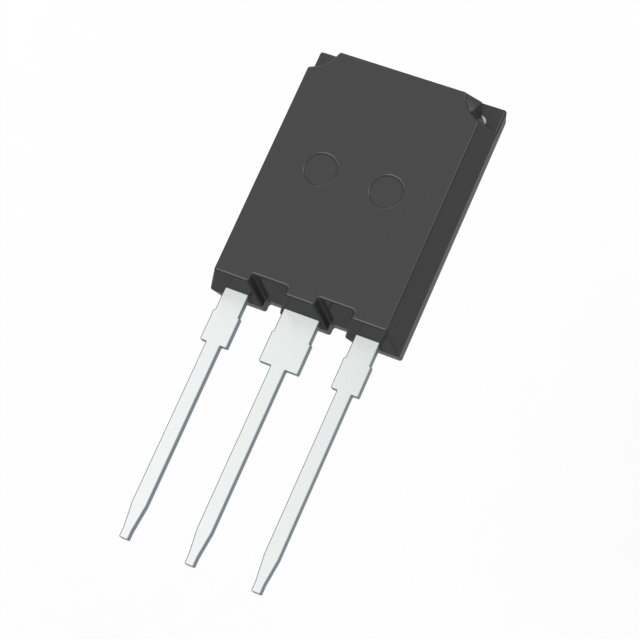

IKQ140N120CH7XKSA1

$13.77

Description：IGBT TRENCH FS 1200V 175A TO247
Series：TRENCHSTOP™

SKU:65a493455df7 Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH FS 1200V 175A TO247
Series：TRENCHSTOP™
Mfr：Infineon Technologies
Package：Tube
IGBT Type：Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：175 A
Current - Collector Pulsed (Icm)：560 A
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 140A
Power - Max：962 W
Switching Energy：8.84mJ (on), 3.38mJ (off)
Input Type：Standard
Gate Charge：970 nC
Td (on/off) @ 25°C：68ns/541ns
Test Condition：-
Reverse Recovery Time (trr)：144 ns
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-247-3
Supplier Device Package：PG-TO247-3-U01
Grade：-
Qualification：-

Download product information

IKQ140N120CH7XKSA1

Overview

The IKQ140N120CH7 is a high-speed 1200 V TRENCHSTOP™ IGBT 7 Technology device co-packed with a full-rated-current, soft-commutating, ultra-fast recovery emitter-controlled diode. It features a collector-emitter voltage of 1200 V and a DC collector current of 140 A at 25°C case temperature. The saturation voltage is 1.7 V at 25°C. Operating junction temperature ranges from -40°C to 175°C. It utilizes a PG-TO247-3-PLUS package.

Feature Summary

Best-in-class high speed IGBT co-packed with full rated current, low Qrr and soft-commutating high speed diode
Optimized for high efficiency in high speed hard switching topologies (2-L inverter, 3-L NPC T-type)
Easy paralleling capability due to positive temperature coefficient in VCEsat

Applications

Industrial UPS
EV-Charging
String inverter
Welding

Procurement Notes

Verify the exact part number suffix against official Infineon documentation to ensure correct packaging and tape-and-reel specifications. Confirm that the application environment does not exceed the maximum ratings defined in the datasheet. Ensure compliance with JEDEC standards for industrial applications as validated by the manufacturer.

Selection Notes

Select this component for high-efficiency, high-speed hard switching topologies requiring robust thermal performance. The positive temperature coefficient facilitates easy paralleling for higher current applications. Verify gate drive requirements align with the specified threshold voltages and charge characteristics.

Part Context

This device belongs to the TRENCHSTOP™ IGBT 7 family, designed for advanced power conversion needs. It integrates an emitter-controlled diode to minimize reverse recovery losses. The product is qualified for industrial applications according to relevant JEDEC tests, ensuring reliability in demanding environments.

Replacement Considerations

Consult official Infineon replacement guides for direct substitutes within the IGBT7 series. Verify pinout compatibility and thermal resistance values when considering alternative packages or voltage ratings.
