Product Detailed Parameters

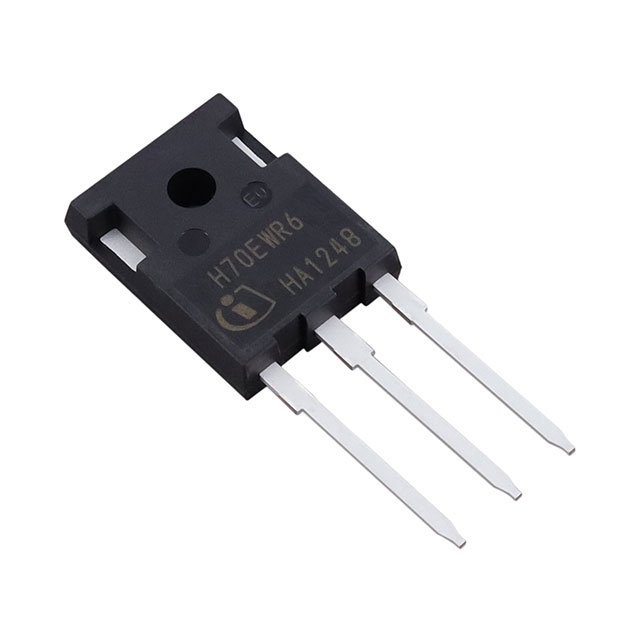

- Description：IGBT TRENCH FS 650V 85A TO247-3
- Series：TrenchStop™ 5 WR6
- Mfr：Infineon Technologies
- Package：Tube
- IGBT Type：Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：85 A
- Current - Collector Pulsed (Icm)：150 A
- Vce(on) (Max) @ Vge, Ic：1.85V @ 15V, 50A
- Power - Max：205 W
- Switching Energy：1.5mJ (on), 730µJ (off)
- Input Type：Standard
- Gate Charge：144 nC
- Td (on/off) @ 25°C：40ns/351ns
- Test Condition：400V, 50A, 22Ohm, 15V
- Reverse Recovery Time (trr)：-
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-247-3
- Supplier Device Package：PG-TO247-3-32
- Grade：-
- Qualification：-
Download product information
Overview
The IKWH50N65WR6XKSA1 is a single N-channel IGBT with an integrated monolithic diode, utilizing TRENCHSTOP™ 5 WR6 technology. It features a collector-emitter voltage of 650 V and a continuous collector current of 85 A at 25 °C case temperature. The device operates within a junction temperature range of -40 °C to 175 °C. Key electrical parameters include a maximum collector-emitter saturation voltage of 1.85 V at 25 °C and a typical turn-off energy of 0.73 mJ under standard test conditions.
Feature Summary
- Enhanced package design providing improved reliability against contamination through increased pin-to-pin creepage and clearance distances
- Monolithic diode optimized for power factor correction and welding applications
- Positive temperature coefficient of collector-emitter saturation voltage enabling easy parallel switching capability
Applications
- Power Factor Correction (PFC)
- Welding equipment
- Zero Current Switching (ZCS) applications
Procurement Notes
Verify the exact suffix XKSA1 matches the required RoHS compliance and tape-and-reel or tube packaging specifications. Confirm that the enhanced creepage package variant is necessary for your specific PCB layout requirements. Ensure the component meets industrial qualification standards per JEDEC47/20/22 before finalizing procurement.
Selection Notes
Select this component when high reliability in contaminated environments is required due to its enhanced insulation distances. Consider the positive temperature coefficient for thermal stability in parallel configurations. Evaluate the integrated diode characteristics if the application involves hard-switching scenarios like PFC or welding circuits.
Part Context
This part belongs to Infineon's TRENCHSTOP™ 5 family, specifically the WR6 variant designed for robustness. It differs from standard TO-247 packages by offering superior isolation metrics. The product is intended for industrial applications and is not qualified for automotive use according to AEC Q100/Q101 standards.
Replacement Considerations
Direct substitutes are not explicitly listed in the provided documentation. When replacing, ensure the alternative maintains the 650 V rating, similar current handling, and compatible package dimensions. Verify that any replacement also offers enhanced creepage distances if environmental reliability is a critical design constraint.
