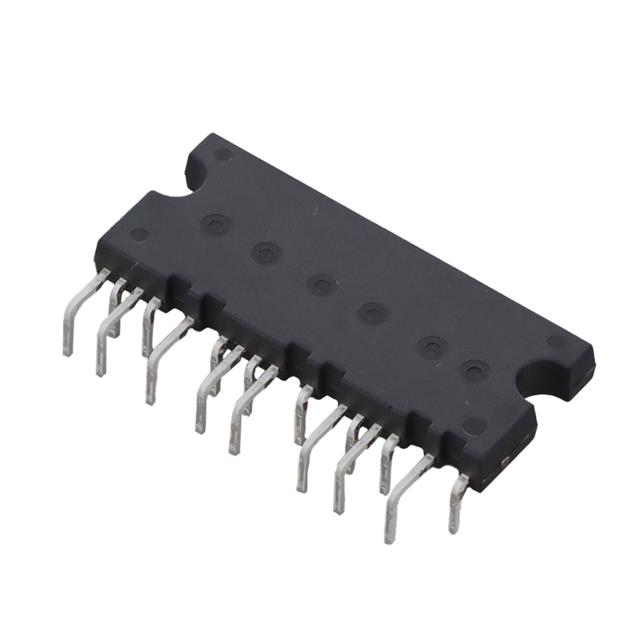

IM241L6T2BAKMA1

Overview

The IM241-L6T2B is a CIPOS Micro intelligent power module featuring a 3-phase open emitter topology with reverse conducting IGBTs. It operates at a 600 V voltage class and supports a collector current of 6 A, with a peak current capability of 9 A for durations under 1 ms. The device utilizes a DIP 29x12 package and includes integrated bootstrap functionality, overcurrent shutdown, and programmable fault clearing. It provides isolated control via 3.3 V or 5.0 V logic inputs and features accessible low-side emitters for phase current monitoring.

Feature Summary

• Integrates reverse conducting IGBT technology with rugged half-bridge drivers to optimize PCB size and system costs.
• Includes precise overcurrent protection, temperature feedback via built-in NTC thermistor, and shoot-through prevention.
• Offers fully isolated DIP and SOP modules with lead-free terminal plating compliant with RoHS standards.

Applications

• Fan motor drives
• Pump motor drives
• Small home appliances

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm the exact package type and lead length configuration. Confirm that the component meets industrial qualification standards as specified in the product validation section. Ensure compatibility with the intended controller logic levels before finalizing procurement orders.

Selection Notes

Select this module for applications requiring high-efficiency operation at fast switching speeds due to its optimized dV/dt characteristics. Consider the available low-side emitter pins if external phase current sensing is required for the control loop. Verify that the thermal management solution can handle the junction-to-case thermal resistance values provided in the datasheet.

Part Context

This component belongs to the CIPOS Micro IM241 product group designed for integrating power and control components. It is specifically engineered for high-efficiency appliance motor drives, offering a combination of advanced IGBT technology and industry-benchmarked driver ICs within a compact form factor.

Replacement Considerations

The IM241-L6T2B2 is documented as a variant with long leads within the same series. Other members of the IM241 family include different current ratings such as the 4 A and 2 A versions, which may require evaluation for electrical compatibility.
