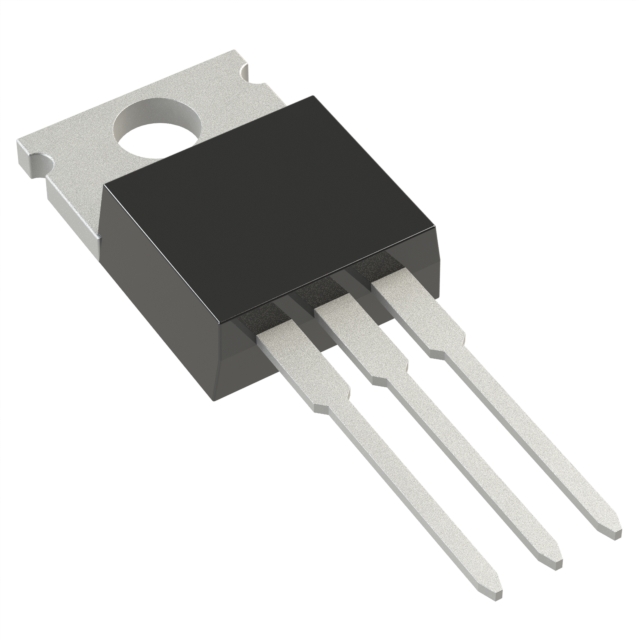

IPP014N06NF2SAKMA2 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is TRENCH 40. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for IPP014N06NF2SAKMA2
- Description：TRENCH 40<-<100V PG-TO220-3
- Series：StrongIRFET™
- Mfr：Infineon Technologies
- Package：Tube
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：39A (Ta), 198A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：6V, 10V
- Rds On (Max) @ Id, Vgs：1.4mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id：3.3V @ 246µA
- Gate Charge (Qg) (Max) @ Vgs：305 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：13800 pF @ 30 V
- FET Feature：-
- Power Dissipation (Max)：3.8W (Ta), 300W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Through Hole
- Supplier Device Package：PG-TO220-3-U05
- Package / Case：TO-220-3
Single FETs, MOSFETs datasheet and documents for IPP014N06NF2SAKMA2
Single FETs, MOSFETs Overview
The Infineon IPP014N06NF2SAKMA2 is a StrongIRFET™2 N-channel power MOSFET rated for 60 V drain-source voltage. It features a maximum on-state resistance of 1.4 mΩ at 100 A and 10 V gate drive, with a continuous drain current capability of 200 A at 25 °C case temperature. The device utilizes PG-TO220-3 packaging and supports an operating junction temperature range from -55 °C to +175 °C. Key electrical parameters include a total gate charge of 203 nC and a single-pulse avalanche energy rating of 1274 mJ.
Single FETs, MOSFETs Feature Summary
- Qualified according to JEDEC standards for product validation
- 100% avalanche tested for enhanced reliability
- Lead-free plating compliant with RoHS directives
- Halogen-free construction per IEC61249-2-21
Single FETs, MOSFETs Applications
- Wide range of general-purpose power switching applications
- DC-DC converter circuits
- Motor control systems
Single FETs, MOSFETs Procurement Notes
Verify the specific ordering suffix AKMA2 against official Infineon documentation to confirm package marking and tape-and-reel specifications. Ensure that the requested component matches the PG-TO220-3 outline dimensions and thermal characteristics detailed in the datasheet before finalizing procurement orders.
Single FETs, MOSFETs Selection Notes
Select this component when low conduction losses are critical due to its 1.4 mΩ Rds(on) specification. Consider the 200 A continuous current rating and robust avalanche energy handling for high-power density designs. Verify that the PG-TO220-3 through-hole package aligns with the target PCB layout and thermal management strategy.
Single FETs, MOSFETs Part Context
This part belongs to the StrongIRFET™2 family, which integrates advanced trench technology for optimized performance in 60 V applications. The series is designed to provide superior efficiency compared to standard planar MOSFETs, making it suitable for modern power electronics requiring high current handling capabilities.
Single FETs, MOSFETs Replacement Considerations
Consult the official Infineon replacement guide for verified cross-reference part numbers. Do not substitute based solely on matching voltage or current ratings without confirming pinout compatibility and thermal resistance values.
