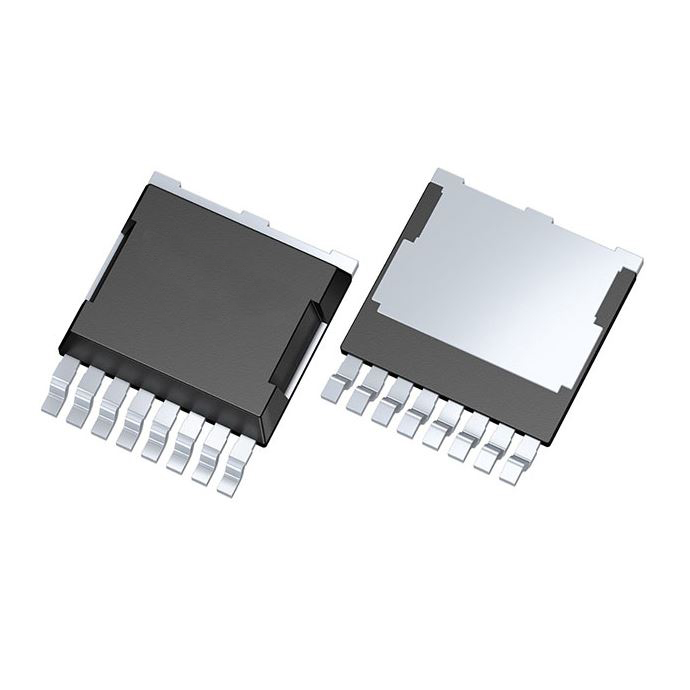

IPTG039N15NM5ATMA1 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is TRENCH >=100V. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for IPTG039N15NM5ATMA1
- Description：TRENCH >=100V
- Series：OptiMOS™ 5
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：150 V
- Current - Continuous Drain (Id) @ 25°C：21A (Ta), 190A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：8V, 10V
- Rds On (Max) @ Id, Vgs：3.9mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id：4.6V @ 243µA
- Gate Charge (Qg) (Max) @ Vgs：93 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：7300 pF @ 75 V
- FET Feature：-
- Power Dissipation (Max)：3.8W (Ta), 319W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：PG-HSOG-8
- Package / Case：8-PowerSMD, Gull Wing
Single FETs, MOSFETs datasheet and documents for IPTG039N15NM5ATMA1
Single FETs, MOSFETs Overview
The IPTG039N15NM5ATMA1 is an N-channel OptiMOS™ 5 power transistor with a 150 V drain-source breakdown voltage. It features a maximum on-state resistance of 3.9 mΩ at 25°C and supports a continuous drain current of 190 A. The device utilizes PG-HSOG-8 surface-mount packaging, offering a thermal resistance from junction to case of 0.47 °C/W. It includes avalanche energy ratings of 344 mJ and total gate charge of 74 nC.
Single FETs, MOSFETs Feature Summary
- Very low on-resistance for high efficiency
- Superior thermal resistance characteristics
- 100% avalanche tested for reliability
Single FETs, MOSFETs Applications
- Server power supply units
- AC-DC power conversion for telecommunications infrastructure
- Power adapters and chargers
- Low-voltage drives
Single FETs, MOSFETs Procurement Notes
Verify the specific ordering suffix ATMA1 against official Infineon documentation to confirm reel specifications and tape-and-reel dimensions. Ensure that the PG-HSOG-8 package footprint matches the target PCB design guidelines provided in the datasheet package outlines section before finalizing procurement orders.
Single FETs, MOSFETs Selection Notes
Select this component when a 150 V rating is required alongside high current handling capabilities up to 190 A. The low on-resistance makes it suitable for applications prioritizing conduction loss reduction. Evaluate the thermal management requirements based on the specified junction-to-case resistance values to ensure adequate heat dissipation in the intended enclosure.
Single FETs, MOSFETs Part Context
This part belongs to the OptiMOS™ 5 family of power transistors designed for industrial applications. It represents a generation of silicon MOSFETs optimized for fast switching and low losses. The technology focuses on improving the figure of merit between on-resistance and gate charge compared to previous iterations.
Single FETs, MOSFETs Replacement Considerations
Check for direct substitutes within the same OptiMOS™ 5 family or other Infineon 150 V series such as IPTG039N15N5 variants. Verify pinout compatibility and thermal performance metrics before swapping components in existing designs.
