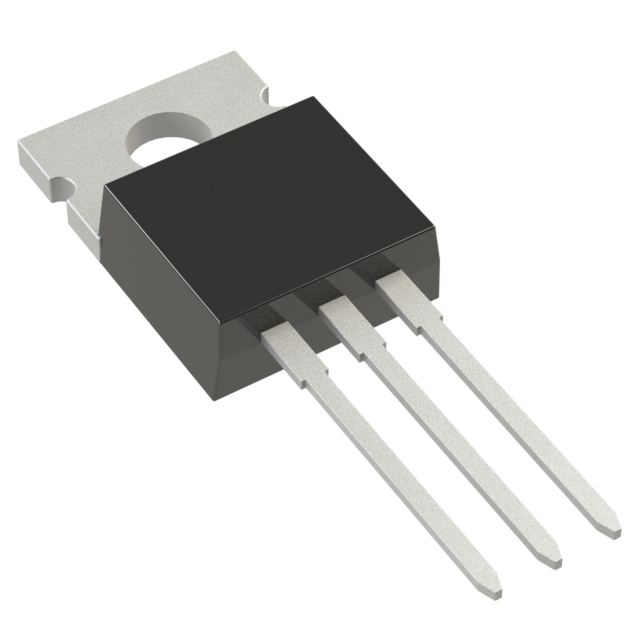

IRG4BC20SPBFXKMA1

Description：IGBT 600V 19A TO-220AB
Series：-

SKU:c9888885347e Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT 600V 19A TO-220AB
Series：-
Mfr：Infineon Technologies
Package：Tube
IGBT Type：-
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：19 A
Current - Collector Pulsed (Icm)：38 A
Vce(on) (Max) @ Vge, Ic：1.6V @ 15V, 10A
Power - Max：60 W
Switching Energy：120µJ (on), 2.05mJ (off)
Input Type：Standard
Gate Charge：27 nC
Td (on/off) @ 25°C：27ns/540ns
Test Condition：480V, 10A, 50Ohm, 15V
Reverse Recovery Time (trr)：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-220-3
Supplier Device Package：TO-220AB
Grade：-
Qualification：-

Download product information

IRG4BC20SPBFXKMA1

Overview

The IRG4BC20SPBFXKMA1 is a Generation 4 Insulated Gate Bipolar Transistor (IGBT) manufactured by Infineon Technologies. It features an ultrafast soft-recovery anti-parallel diode co-packaged with the IGBT chip, designed for high-frequency operation exceeding 5.0 kHz. The device is rated for a collector-emitter breakdown voltage of 600 V and supports short-circuit withstand capabilities up to 10 µs at 125°C with a gate-emitter voltage of 15 V. This component utilizes industry-standard packaging to facilitate efficient thermal management in bridge configurations.

Feature Summary

Generation 4 IGBT design providing tighter parameter distribution and higher efficiency compared to previous generations.
Co-packaged HEXFRED ultrafast, ultra-soft-recovery anti-parallel diodes optimized for performance with the IGBT.
Short-circuit rated capability ensuring robustness under fault conditions at elevated temperatures.

Applications

High power density motor controls
Bridge configurations requiring integrated freewheeling diodes
High operating frequency applications above 5.0 kHz

Procurement Notes

Verify the specific suffix 'XKMA1' against official Infineon documentation to confirm exact tape-and-reel specifications or marking variations. Confirm RoHS compliance status as legacy datasheets may reference different environmental declarations. Ensure the source document explicitly lists this full part number to avoid confusion with similar standard packages.

Selection Notes

Select this component when designing circuits that require both high switching speed and integrated freewheeling functionality within a single package. The Generation 4 technology offers improved efficiency over older models. Consider the 600V rating and short-circuit tolerance when sizing protection mechanisms for industrial motor drives or inverters.

Part Context

This part belongs to the IRG4BC series of Generation 4 IGBTs from Infineon (formerly International Rectifier). These devices are engineered to replace earlier products like the IRGBC20KD2-S. The series focuses on minimizing switching losses and EMI through optimized diode recovery characteristics while maintaining high power density.
