ISPPAC-CLK5410D-01SN64C

Clock Generators, PLLs, Frequency Synthesizers Overview

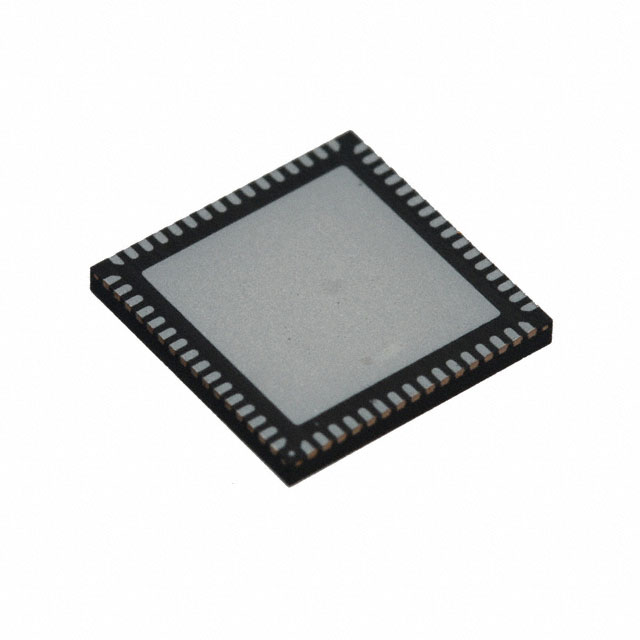

The ISPPAC-CLK5410D-01SN64C is a programmable clock generator from the ispClock family, manufactured by Lattice Semiconductor Corporation. It features a single circuit with a 2:10 input-to-output ratio and supports differential inputs and outputs. The device operates at a maximum frequency of 400MHz within a supply voltage range of 3V to 3.6V. It accommodates various input and output standards including HCSL, HSTL, LVDS, LVPECL, MLVDS, and SSTL. Packaged in a 64-VFQFN exposed pad (64-QFNS 9x9), it is designed for surface mount installation and functions across an operating temperature range of -40°C to 85°C.

Clock Generators, PLLs, Frequency Synthesizers Feature Summary

• Supports multiple high-speed logic families for flexible system integration
• Integrates a Phase-Locked Loop (PLL) with bypass capability
• Provides differential signal processing for both input and output stages

Clock Generators, PLLs, Frequency Synthesizers Applications

• High-speed digital system clock distribution
• Data converter timing synchronization
• Communication interface clock generation

Clock Generators, PLLs, Frequency Synthesizers Procurement Notes

Verify the specific suffix 'C' against official Lattice documentation to confirm package or temperature grade variations compared to the 'I' variant. Confirm end-of-life status via manufacturer notices, as related models have been discontinued. Ensure RoHS3 compliance matches current regulatory requirements for the target deployment region.

Clock Generators, PLLs, Frequency Synthesizers Selection Notes

Select this component when a fixed-ratio 2:10 fanout buffer with PLL functionality is required. Verify that the 400MHz maximum frequency meets the system's timing constraints. Ensure the available supply voltage aligns with the 3V to 3.6V operational window and that the 64-pin QFN package fits the PCB layout constraints.

Clock Generators, PLLs, Frequency Synthesizers Part Context

This part belongs to the Lattice ispClock series, which focuses on programmable clock management solutions. The ISPPAC-CLK5410D variant specifically addresses applications requiring precise jitter attenuation and flexible I/O standard support. It serves as a critical timing element in complex electronic designs where signal integrity and low power consumption are prioritized.

Clock Generators, PLLs, Frequency Synthesizers Replacement Considerations

Check Lattice's official cross-reference guides for direct replacements. Note that the ISPPAC-CLK5410D-01SN64I has been reported as discontinued; verify if the 'C' suffix offers equivalent availability or if alternative ispClock family members are recommended.
