Product Detailed Parameters
- Description：TRANS 2PNP DUAL 45V 10MA 8-DIP
- Series：IT130
- Mfr：Linear Integrated Systems, Inc.
- Package：Tube
- Transistor Type：2 PNP (Dual)
- Current - Collector (Ic) (Max)：10mA
- Voltage - Collector Emitter Breakdown (Max)：45V
- Vce Saturation (Max) @ Ib, Ic：500mV @ 50µA, 500µA
- Current - Collector Cutoff (Max)：1nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce：100 @ 1mA, 5V
- Power - Max：500mW
- Frequency - Transition：90MHz
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：8-DIP (0.300", 7.62mm)
- Supplier Device Package：8-DIP
- Grade：-
- Qualification：-
Download product information
Overview

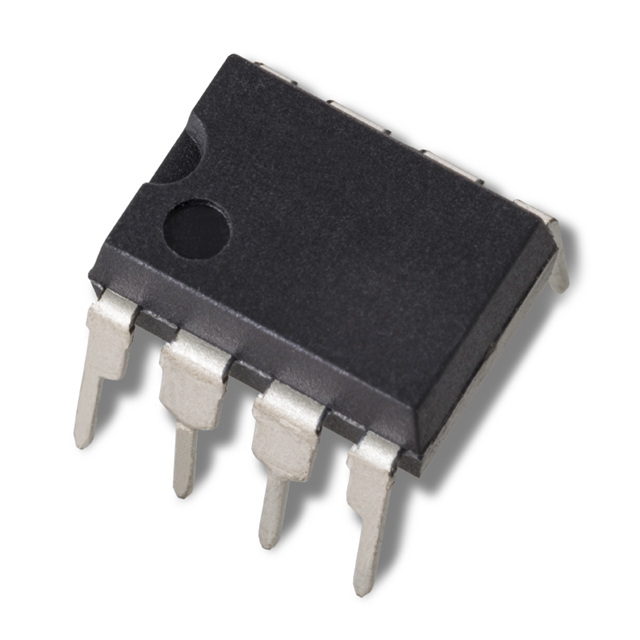

The IT131 is a monolithic dual NPN transistor manufactured by Linear Integrated Systems. It serves as a replacement for the discontinued Intersil IT120. The device features two integrated NPN transistors within a single package, designed for general-purpose amplification applications. It is available in an 8-lead PDIP (Plastic Dual In-line Package) configuration and complies with RoHS standards. The component operates as a discrete semiconductor device suitable for circuits requiring matched dual transistor pairs.
Feature Summary
- Monolithic integration of dual NPN transistors
- General-purpose amplification capability
- RoHS compliant manufacturing
Applications
- General-purpose amplifier circuits
- Signal processing stages requiring matched dual transistors
- Replacement for legacy Intersil IT120 designs
Procurement Notes
Verify the specific ordering suffix to confirm the PDIP-8 package type and RoHS compliance status. Ensure the manufacturer is identified as Linear Integrated Systems or its successor entity. Confirm that the part number matches the exact specification for the dual NPN configuration rather than other variants in the IT series.
Selection Notes
Select this component when a matched dual NPN transistor pair is required for general-purpose amplification. Consider it as a direct functional substitute for the Intersil IT120 in existing designs. Verify pin compatibility and electrical characteristics against the original design requirements before implementation.
Part Context
The IT131 belongs to a family of monolithic dual NPN transistors produced by Linear Integrated Systems. This family includes related parts such as the LS301, LS310, and LS318. These devices are characterized by their integrated dual-transistor structure, offering space savings and improved matching compared to discrete components.
Replacement Considerations
The IT131 is documented as a replacement for the discontinued Intersil IT120. Designers migrating from Intersil products should verify pinout compatibility and thermal performance. No other specific substitute part numbers are publicly confirmed for this model.
