Product Detailed Parameters
- Description：IGBT MODULE 600V 75A 250W TO204
- Series：-
- Mfr：IXYS
- Package：-
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：3V @ 15V, 40A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：TO-204AA, TO-3
- Supplier Device Package：TO-204
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：250 W
- Current - Collector Cutoff (Max)：200 µA
- Input Capacitance (Cies) @ Vce：4.5 nF @ 25 V
Download product information
Overview

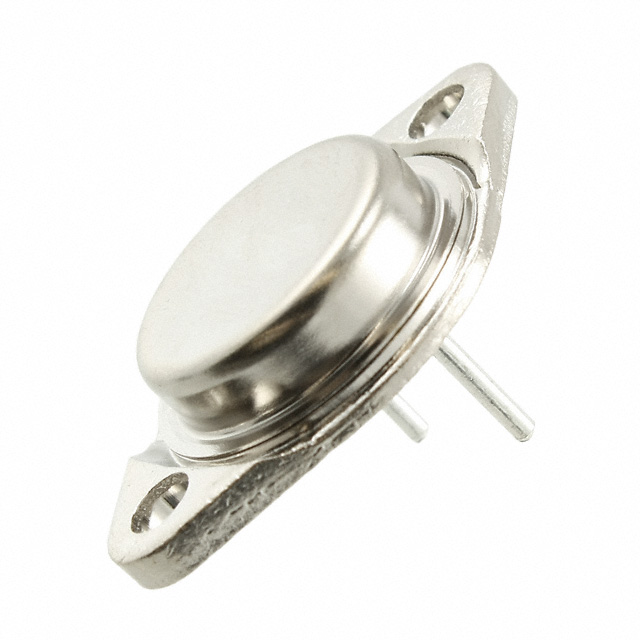

The IXYS IXGM40N60A is a high-speed N-channel Insulated Gate Bipolar Transistor (IGBT) housed in the TO-204AE package. It features a collector-emitter breakdown voltage of 600 V and a continuous collector current rating of 75 A at 25°C, decreasing to 40 A at 90°C. The device exhibits a maximum saturation voltage of 3.0 V at 40 A with a 15 V gate drive. Key electrical parameters include a total gate charge of 250 nC, an off-state energy loss of 6 mJ, and a thermal resistance from junction to case of 0.5 K/W.
Feature Summary
- Utilizes second-generation HDMOSTM process technology for enhanced performance
- Designed for high current handling capability and low on-state conduction losses
- Features MOS gate turn-on characteristics to simplify drive circuitry requirements
Applications
- AC motor speed control systems
- DC servo and robot drives
- Uninterruptible power supplies (UPS)
- Switch-mode and resonant-mode power supplies
Procurement Notes
Verify component authenticity by checking manufacturer markings against official datasheet specifications. Confirm package type matches the TO-204AE outline dimensions. Ensure the specific suffix 'A' is present to guarantee the correct switching speed and saturation voltage characteristics required for the target application design.
Selection Notes
Select this component when a 600 V blocking voltage and up to 75 A continuous current are required in a through-hole configuration. The IXGM40N60A is suitable for designs prioritizing lower switching energy compared to standard variants. Evaluate thermal management capabilities based on the 0.5 K/W junction-to-case resistance and the specific operating temperature range of -55°C to +150°C.
Part Context
This IGBT belongs to the IXGH/IXGM 40N60 series, which includes both low saturation voltage and high-speed variants. The IXGM40N60A specifically denotes the high-speed version within the TO-204AE package family. This series is engineered for industrial applications requiring robust switching performance and reliable operation under varying thermal conditions.
Replacement Considerations
Direct substitutes within the same series include the IXGM40N60, which offers lower saturation voltage but different switching characteristics. Cross-package alternatives such as the IXGH40N60A provide identical electrical performance in the TO-247AD footprint.
