JANTX2N6989U/TR

Overview

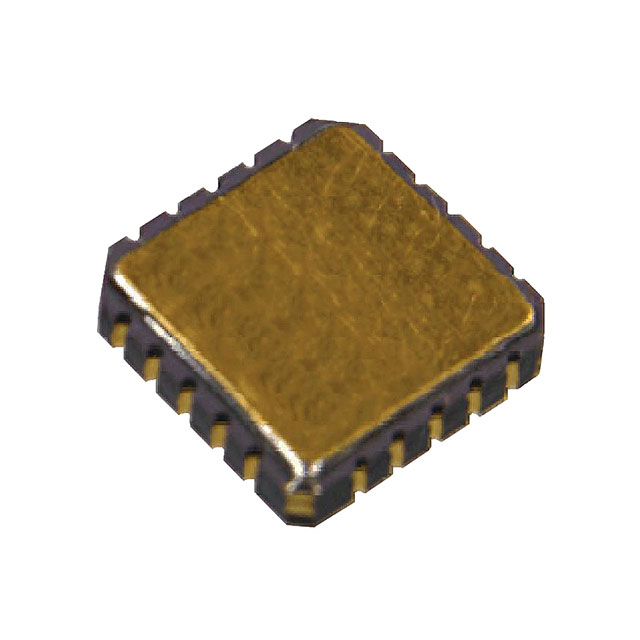

The JANTX2N6989U/TR is a silicon NPN quad small-signal bipolar junction transistor manufactured by Microchip Technology. It features a surface-mount LCC-20 package and operates within a temperature range of -65°C to +200°C. Key electrical specifications include a maximum collector-emitter voltage (VCEO) of 50 V, a collector-base voltage (VCBO) of 75 V, and an emitter-base voltage (VEBO) of 6 V. The device supports a maximum DC collector current of 800 mA with a power dissipation rating of 1 W. It exhibits a minimum DC current gain (hFE) of 30 at 500 mA and 10 V, with a maximum hFE of 325 at 1 mA and 10 V.

Feature Summary

• Hermetically sealed ceramic construction for environmental protection
• Quad configuration integrating four independent NPN transistors
• Extended high-temperature operation capability up to 200°C

Applications

• Military aerospace systems requiring radiation hardness
• High-reliability signal processing circuits
• General switching applications in extreme environments

Procurement Notes

Verify the specific suffix against official Microchip documentation to confirm screening levels and testing requirements. Ensure compatibility with MIL-PRF-19500/559 standards if military qualification is required. Confirm package integrity and hermetic seal status prior to integration into sensitive assemblies.

Selection Notes

Select this component when a quad NPN configuration is necessary for space-constrained surface-mount designs. Consider the 1 W power dissipation limit and thermal management requirements for the LCC-20 package. Evaluate the 800 mA current capacity against circuit load demands to ensure reliable operation under specified conditions.

Part Context

This part belongs to the 2N6989 family of quad NPN transistors produced by Microchip Technology. It shares core electrical characteristics with variants such as JAN2N6989U but differs in packaging and screening specifications. The U suffix typically denotes a specific surface-mount package format within this product line.

Replacement Considerations

JAN2N6989U/TR is a related variant within the same family. Verify pinout compatibility and specific screening differences before substitution.
