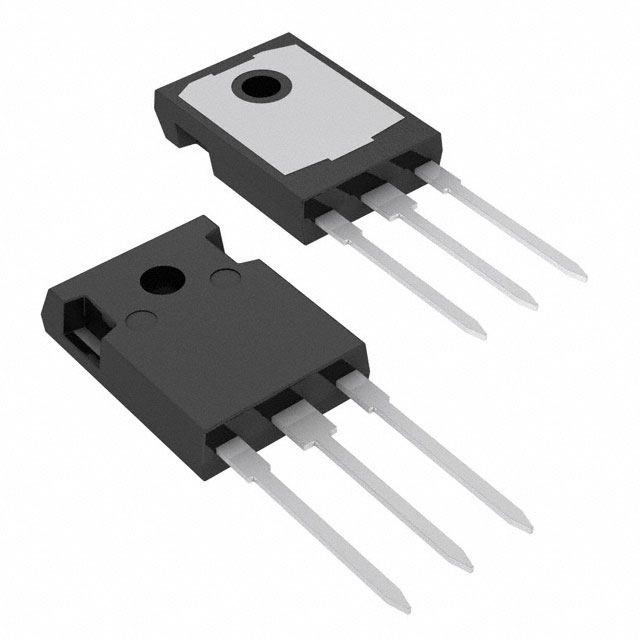

LFUSCD20120B

Description：DIODE ARR SIC 1200V 10A TO-247AD
Series：-

SKU:6f6ac09553ad Category: Diode Arrays Brand: Littelfuse Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LFUSCD20120B is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Littelfuse Inc.. Its product description is DIODE ARR SIC 1200V 10A TO-247AD. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for LFUSCD20120B

Description：DIODE ARR SIC 1200V 10A TO-247AD
Series：-
Mfr：Littelfuse Inc.
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max)：1200 V
Current - Average Rectified (Io) (per Diode)：10A (DC)
Voltage - Forward (Vf) (Max) @ If：1.7 V @ 20 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：250 µA @ 1200 V
Operating Temperature - Junction：175°C (Max)
Mounting Type：Through Hole
Package / Case：TO-247-3
Supplier Device Package：TO-247AD
Grade：-
Qualification：-

Diode Arrays datasheet and documents for LFUSCD20120B

LFUSCD20120B

Diode Arrays Overview

The Littelfuse LFUSCD20120B is a silicon carbide (SiC) Schottky diode rated for 1200 V DC blocking voltage and 20 A maximum DC forward current. It features near-zero reverse recovery current, enhanced surge capability up to 160 A non-repetitive peak forward surge current, and a maximum operating junction temperature of 175 °C. The device utilizes a TO-247-3 leaded package with a thermal resistance of 0.55 °C/W.

Diode Arrays Feature Summary

Positive temperature coefficient enables safe operation and facilitates easy paralleling
Extremely fast switching behavior that remains independent of temperature variations
Dramatically reduced switching losses compared to standard silicon bipolar diodes

Diode Arrays Applications

Boost diodes in power factor correction circuits
Switch-mode power supplies
Uninterruptible power supplies
Solar inverters
Industrial motor drives

Diode Arrays Procurement Notes

Verify the specific ordering suffix 'B' corresponds to the TO-247-3 package configuration as documented in the official datasheet. Confirm compliance requirements such as RoHS status against the latest manufacturer specifications before finalizing procurement orders.

Diode Arrays Selection Notes

Select this component for high-efficiency applications requiring hard switching performance. The wide bandgap material supports low forward voltage characteristics and robust transient handling. Ensure thermal management strategies accommodate the specified junction temperature limits during continuous operation.

Diode Arrays Part Context

This part belongs to the LFUSCD series of silicon carbide Schottky diodes manufactured by Littelfuse. The series is engineered to improve efficiency, reliability, and thermal management in demanding power electronics environments where traditional silicon components may underperform.
