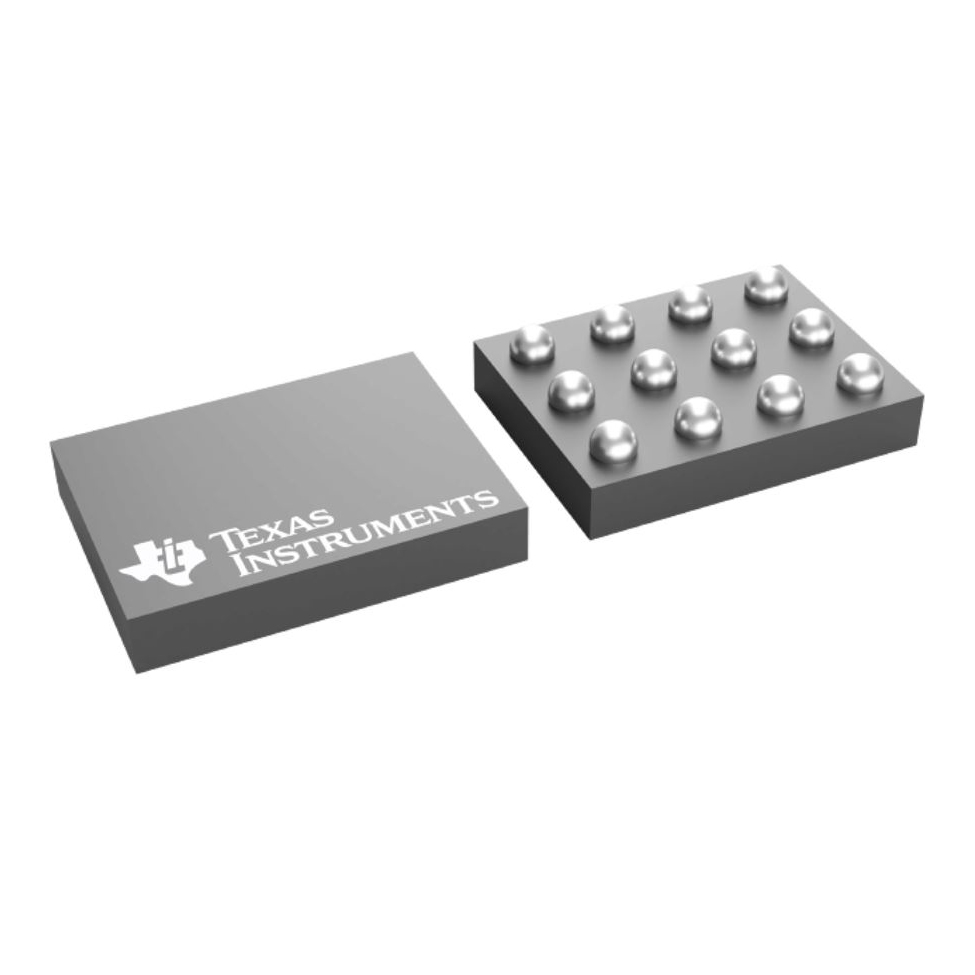

LP5813BYBHR

$1.45

Description：12 RGB LED SYNCHRONOUS BOOST DRI
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7347e0d377e3 Category: LED Drivers IC Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LP5813BYBHR is listed in the LED Driver IC range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is 12 RGB LED SYNCHRONOUS BOOST DRI. Review the specifications below when checking this part for your BOM.

LED Driver IC specifications for LP5813BYBHR

Description：12 RGB LED SYNCHRONOUS BOOST DRI
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Type：DC DC Regulator
Topology：Step-Up (Boost)
Internal Switch(s)：Yes
Number of Outputs：1
Voltage - Supply (Min)：0.5V
Voltage - Supply (Max)：5.5V
Voltage - Output：3V ~ 5.5V
Current - Output / Channel：1.6A (Switch)
Frequency：500kHz, 1MHz
Dimming：Analog, PWM
Applications：General Purpose
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：12-BGA, DSBGA
Supplier Device Package：12-DSBGA (1.84x1.43)
Grade：-
Qualification：-

LED Driver IC datasheet and documents for LP5813BYBHR

LP5813BYBHR

LED Driver IC Overview

The LP5813BYBHR is an LED lighting driver IC from Texas Instruments designed for synchronous boost applications. It supports a 4x3 matrix RGB LED configuration, providing independent pixel-level control. The device integrates a boost converter and operates within a supply voltage range of 2.7 V to 5.5 V. It features analog and PWM dimming capabilities with a maximum output current per channel up to 400 mA. The component is housed in a DSBGA-9 package and functions across a temperature range of -40°C to +85°C.

LED Driver IC Feature Summary

Integrates a synchronous boost converter for efficient LED driving
Supports 4x3 matrix RGB LED configurations with independent channel control
Enables precise brightness adjustment through combined analog and PWM dimming methods

LED Driver IC Applications

RGB LED matrix illumination systems
Pixel-level addressable LED displays
Compact LED backlighting modules requiring boost topology

LED Driver IC Procurement Notes

Verify the specific suffix BYBHR against the official datasheet to confirm package type and tape-and-reel specifications. Ensure the design accounts for the synchronous boost topology requirements and thermal management for the DSBGA-9 package. Cross-reference the manufacturer's latest documentation for any pinout or electrical characteristic updates prior to finalizing procurement orders.

LED Driver IC Selection Notes

Select this component when a synchronous boost architecture is required for RGB LED matrices rather than linear regulation. It is suitable for designs needing independent pixel control with high current drive capabilities. Consider the DSBGA-9 footprint constraints and the operating voltage range compatibility with the system power supply during the selection process.

LED Driver IC Part Context

This part belongs to the LP5813 series of LED drivers from Texas Instruments. The series focuses on flexible LED driving solutions for complex matrix arrangements. The LP5813 variant specifically addresses applications requiring integrated power conversion alongside multi-channel control, distinguishing it from linear-only driver families.
