LPTC-V-0.85-3-30

$1.90

Description：CMC 850UH 3A 2LN TH
Series：LPTC-V
Mfr：Signal Transformer
Package：Tray

SKU:da2598ae3a86 Category: Common Mode Chokes Brand: Signal Transformer

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LPTC-V-0.85-3-30 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is CMC 850UH 3A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for LPTC-V-0.85-3-30

Description：CMC 850UH 3A 2LN TH
Series：LPTC-V
Mfr：Signal Transformer
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：30mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.709" Dia x 0.512" L (18.00mm x 13.00mm)
Height (Max)：0.669" (17.00mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：850 µH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for LPTC-V-0.85-3-30

LPTC-V-0.85-3-30

Common Mode Chokes Overview

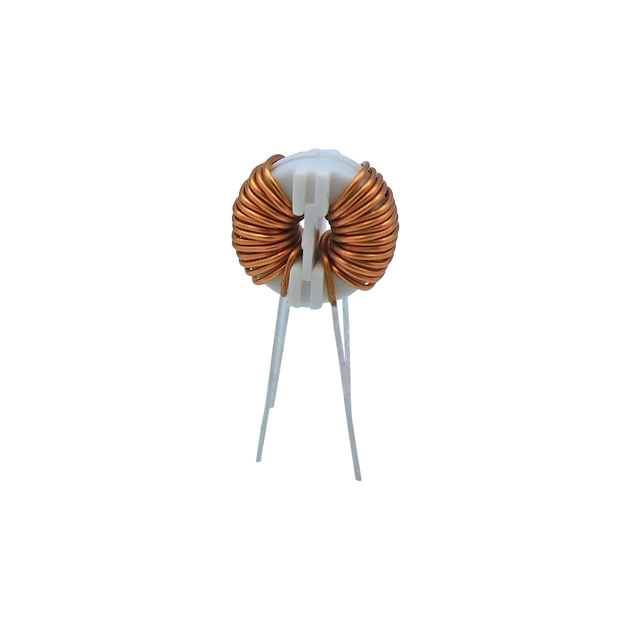

The LPTC-V-0.85-3-30 is a toroidal common mode choke from the Signal Transformer LPTC-V series, designed for power line noise suppression. It features an inductance of 850 µH at 1 kHz and supports a maximum DC current of 3 A. The component exhibits a maximum DC resistance of 30 mOhms and operates within a temperature range starting at -55°C. With a maximum height of 17.00 mm, it utilizes through-hole mounting and meets UL94V-0 flammability standards.

Common Mode Chokes Feature Summary

Toroidal core construction for efficient magnetic flux containment
Low DC resistance to minimize power loss in high-current applications
Through-hole mounting for secure PCB integration
UL94V-0 rated housing for fire safety compliance

Common Mode Chokes Applications

Power supply input filtering
Home appliance noise countermeasures
General EMI suppression on AC/DC lines

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix matches the required inductance and current ratings. Confirm RoHS compliance status with the manufacturer prior to procurement. Ensure the through-hole footprint dimensions align with the target PCB layout. Check lead thickness specifications if automated insertion equipment is utilized. Validate that the operating temperature range meets the environmental requirements of the final assembly.

Common Mode Chokes Selection Notes

Select this component when low DC resistance is critical for maintaining efficiency in 3A circuits. The 850 µH inductance provides effective attenuation for common mode noise without excessive saturation. Consider the physical height constraint of 17.00 mm for enclosure design. The toroidal shape offers superior noise cancellation compared to standard bobbin types. Ensure the application does not require AEC-Q200 automotive qualification.

Common Mode Chokes Part Context

This part belongs to the LPTC-V series of toroidal common mode chokes manufactured by Signal Transformer. The series is characterized by its compact toroidal design and wide inductance range. These components are engineered for robust performance in general-purpose electronic equipment requiring reliable electromagnetic interference mitigation.
