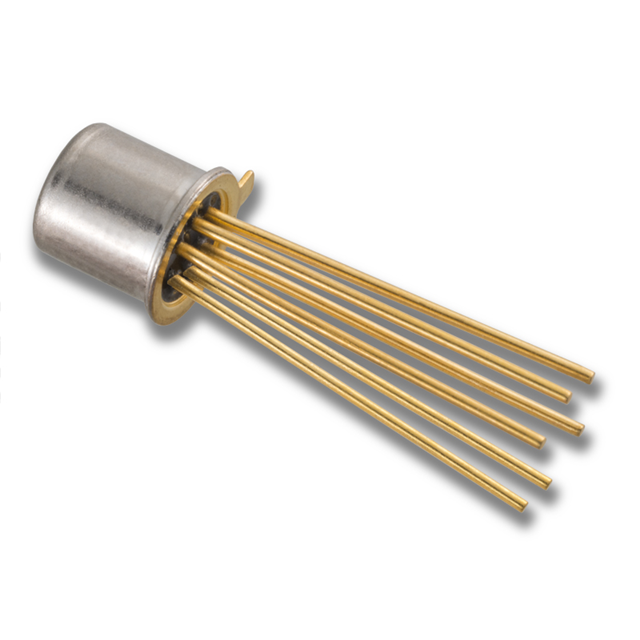

LS845 TO-71 6L ROHS

$7.02

Description：JFET 2N-CH 60V TO71
Series：LS845

SKU:6a820141dc99 Category: JFETs Brand: Linear Integrated Systems, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：JFET 2N-CH 60V TO71
Series：LS845
Mfr：Linear Integrated Systems, Inc.
Package：Bulk
FET Type：2 N-Channel (Dual)
Voltage - Breakdown (V(BR)GSS)：60 V
Drain to Source Voltage (Vdss)：-
Current - Drain (Idss) @ Vds (Vgs=0)：1.5 mA @ 15 V
Current Drain (Id) - Max：-
Voltage - Cutoff (VGS off) @ Id：1 V @ 1 nA
Input Capacitance (Ciss) (Max) @ Vds：8pF @ 15V
Resistance - RDS(On)：-
Power - Max：400 mW
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-71-6 Metal Can
Supplier Device Package：TO-71
Grade：-
Qualification：-

Download product information

LS845 TO-71 6L ROHS

Overview

The LS845 TO-71 6L ROHS is a low-noise, monolithic dual N-channel JFET amplifier from the LS844 series. It features an input capacitance of 8 pF maximum and a voltage noise density of 3.0 nV/√Hz at 1 kHz. The device offers a gate leakage current of 50 pA maximum and a transconductance of 1500 µS typical. Breakdown voltages are rated at -60 V for both gate-to-source and gate-to-gate configurations.

Feature Summary

Ultra-low input capacitance reduces intermodulation distortion
Monolithic construction provides tight differential matching
Low offset voltage minimizes input error trimming requirements
High common-mode rejection ratio improves accuracy

Applications

Wideband differential amplifiers
High-speed temperature compensated single-ended input amplifiers
High-speed comparators
Impedance converters
Acoustic sensors

Procurement Notes

Verify that the component matches the specific LS844 series datasheet specifications rather than generic JFET parameters. Confirm the package type is the TO-71 metal can variant with six leads. Ensure RoHS compliance documentation aligns with the ordering suffix provided in the request.

Selection Notes

Select this component when minimizing input capacitance is critical to circuit performance. The LS845 variant provides higher offset voltage limits compared to LS843 or LS844 options. Use this part for applications requiring high slew rates and low drift over temperature ranges.

Part Context

This component belongs to the LS844 Series, which includes LS843, LS844, and LS845 variants. These devices are industry-leading low-input-capacitance dual N-channel JFETs. They share similar pinouts across packages like SOIC, SOT-23, and metal cans.
