LT3597EUHG#PBF

LED Driver IC Overview

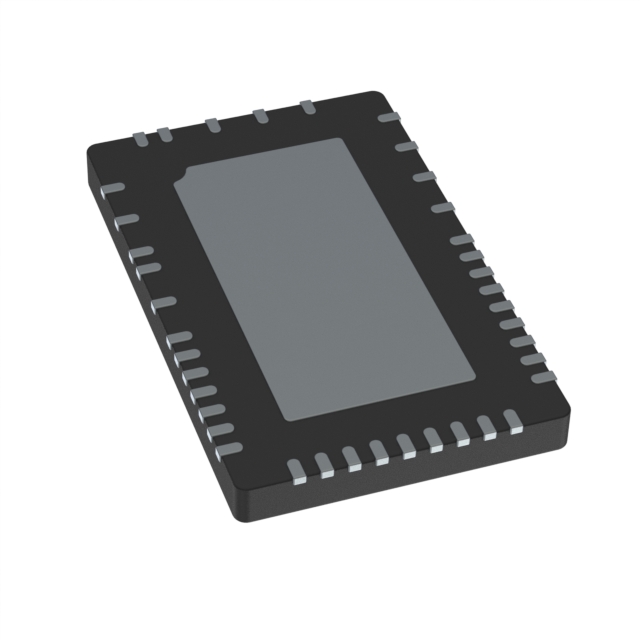

The LT3597EUHG#PBF is a monolithic, three-channel buck LED driver IC from Analog Devices. It operates with an input voltage range of 6V to 55V and provides independent current regulation for up to ten LEDs per channel. The device supports digital PWM dimming with a frequency of 100Hz and a ratio of 10,000:1. Each channel utilizes a fast NPN current source capable of delivering 100mA output current. The component is housed in a 52-lead QFN package (5x8 mm) and is designed for high-efficiency white LED applications.

LED Driver IC Feature Summary

• Three independent buck regulators for driving multiple LED strings
• High-resolution digital PWM dimming capability at 100Hz
• Integrated fast NPN current sources for precise channel control
• Wide input voltage tolerance suitable for automotive and industrial supplies

LED Driver IC Applications

• Automotive exterior lighting systems
• Industrial LED illumination arrays
• High-brightness white LED backlighting modules

LED Driver IC Procurement Notes

Verify the specific suffix #PBF indicates lead-free compliance and tube packaging when sourcing. Confirm the operating temperature range meets environmental requirements. Ensure the 52-QFN footprint matches the PCB layout design. Cross-reference the datasheet revision date to ensure compatibility with latest electrical specifications.

LED Driver IC Selection Notes

Select this component for designs requiring three isolated LED channels from a single controller. It is suitable for applications needing wide input voltage ranges up to 55V. Consider the thermal performance of the exposed pad QFN package for heat dissipation. Verify that the required dimming resolution aligns with the 10,000:1 digital PWM specification.

LED Driver IC Part Context

This part belongs to the LT3597 family of triple step-down LED drivers. It shares functional similarities with other multi-channel drivers but offers specific integration for high-voltage inputs. The EUHG variant denotes the specific temperature grade and package type within the Analog Devices portfolio.

LED Driver IC Replacement Considerations

LT3597IUHG#PBF is a verified alternative within the same series. Check pinout compatibility and thermal characteristics before substitution. Ensure the replacement part meets the same 100mA per channel requirement.
