M50-3610642R

Headers, Male Pins Overview

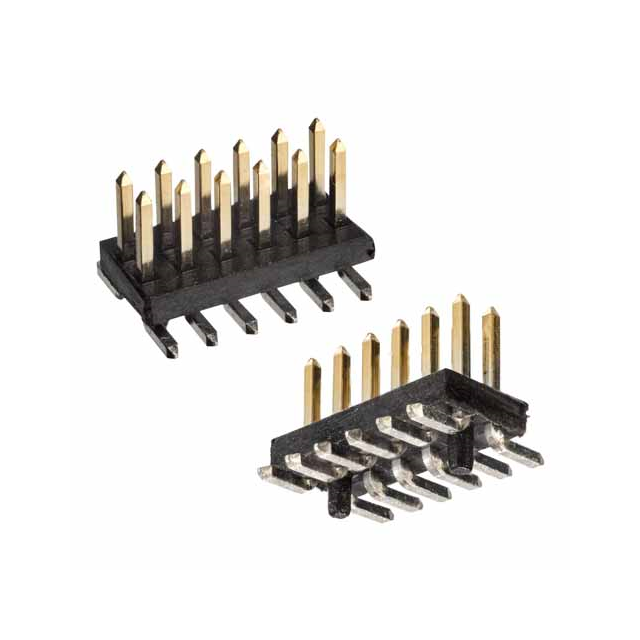

The Harwin M50-3610642R is a surface mount header connector from the ARCHER series, featuring a 1.27 mm pitch and 12 positions in a double-row configuration. It utilizes gold-plated phosphor bronze contacts for reliable signal transmission and operates within a temperature range of -40°C to +105°C. The housing is constructed from black liquid crystal polymer (LCP) with UL 94 V-0 flammability ratings. Designed for vertical SMT installation, it includes integrated mounting pegs to ensure precise PCB alignment during assembly.

Headers, Male Pins Feature Summary

• Double-row straight surface mount design with integrated mounting pegs for accurate placement
• Gold-plated phosphor bronze contacts ensuring high reliability and corrosion resistance
• Black LCP housing providing structural stability and UL 94 V-0 flame retardancy

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Mezzanine connector systems requiring precise alignment
• Compact electronic assemblies utilizing surface mount technology

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'R' corresponds to the reel packaging format as indicated by distributor listings. Confirm compatibility with mating sockets within the specified 2.2mm to 8.5mm height range. Ensure procurement channels provide original manufacturer documentation to validate RoHS compliance and material specifications against current industry standards.

Headers, Male Pins Selection Notes

Select this component when a 12-position, 1.27mm pitch double-row header is required for vertical surface mount applications. The inclusion of mounting pegs makes it suitable for automated assembly processes demanding high positional accuracy. Consider the operating temperature limits and current rating constraints relative to the specific circuit requirements before finalizing the design integration.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER M50 family, which specializes in 1.27mm pitch connectors. The series offers various configurations including single and double rows with different mating heights. The M50-3610642R specifically addresses needs for compact, high-reliability connections in space-constrained electronic environments using standard surface mount manufacturing techniques.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27mm pitch, 12-position double-row specification, and SMT mounting style. Verify that alternative components support similar current ratings and thermal performance. Cross-reference pinout configurations and mechanical dimensions to ensure physical and electrical compatibility without redesigning the PCB footprint.
