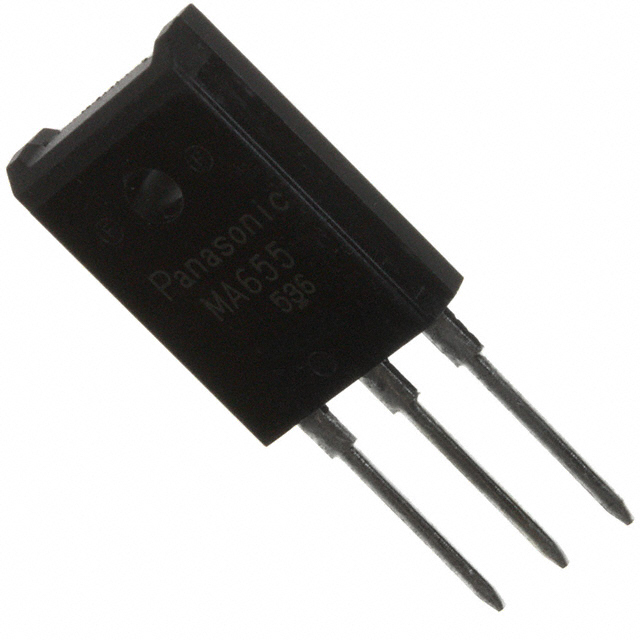

MA3G655 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is DIODE ARRAY GP 300V 20A TOP3F-A1. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for MA3G655
- Description：DIODE ARRAY GP 300V 20A TOP3F-A1
- Series：-
- Mfr：Panasonic Electronic Components
- Package：Bulk
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：300 V
- Current - Average Rectified (Io) (per Diode)：20A
- Voltage - Forward (Vf) (Max) @ If：1 V @ 10 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：50 ns
- Current - Reverse Leakage @ Vr：20 µA @ 300 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Through Hole
- Package / Case：TOP-3F
- Supplier Device Package：TOP-3F-A1
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for MA3G655
Diode Arrays Overview
The Panasonic MA3G655 is a silicon planar fast recovery diode with a common cathode configuration, designed for high-frequency rectification. It features a repetitive peak reverse voltage of 300 V and an average forward current rating of 20 A. The device exhibits a low forward voltage of 1.0 V at 10 A and a fast reverse recovery time of 50 ns. Thermal resistance from junction to case is 1.5 °C/W, while junction-to-ambient resistance is 40 °C/W. It operates within a junction temperature range of -40°C to +150°C and utilizes the EIAJ SC-92 TOP-3F-A1 package.
Diode Arrays Feature Summary
- High reverse voltage capability
- Low forward voltage drop
- Fast reverse recovery time
Diode Arrays Applications
- High-frequency rectification circuits
- General electronic equipment
- Office equipment
- Communications equipment
- Measuring instruments
Diode Arrays Procurement Notes
Verify component status directly via official channels as maintenance or discontinuation stages may apply. Confirm RoHS compliance and latest specifications before final design integration. Ensure sourcing aligns with authorized distribution networks to guarantee authenticity and traceability.
Diode Arrays Selection Notes
Select this component for applications requiring high-speed switching and robust reverse voltage handling. Evaluate thermal management requirements based on the specified junction-to-case and junction-to-ambient thermal resistances. Ensure operating conditions remain within absolute maximum ratings to prevent failure.
Diode Arrays Part Context
This part belongs to the MA3G655 series of silicon planar fast recovery diodes manufactured by Panasonic Electronic Components. It serves as a replacement for the conventional MA655 designation. The product complies with the RoHS Directive (EU 2002/95/EC) and is intended for standard industrial and commercial electronics.
Diode Arrays Replacement Considerations
The MA655 is listed as the conventional equivalent part number for the MA3G655. Verify pinout compatibility and electrical characteristics when substituting.
Explore related parts through Rectifiers, Diodes, Discrete Semiconductor Products, all product categories.
