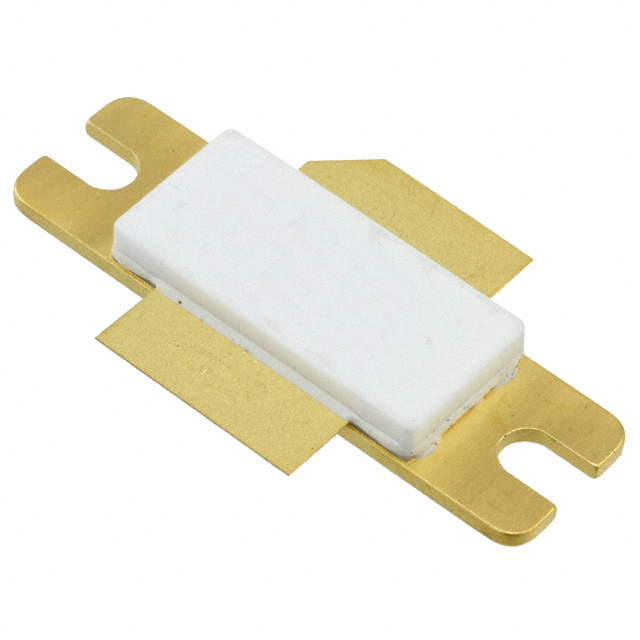

MAGX-001214-650L00

Overview

The MAGX-001214-650L00 is a depletion-mode Gallium Nitride on Silicon Carbide (GaN) HEMT transistor designed for pulsed power applications. It operates within the 1200 MHz to 1400 MHz frequency range, delivering a peak output power of 650 W with a typical gain of 19.5 dB and drain efficiency of 60%. The device supports a +50 V drain voltage and requires a 300 μs pulse width at a 10% duty cycle. Absolute maximum ratings include a drain-source voltage of 65 V, gate voltage from -8 V to 0 V, and a drain current of 27 A.

Feature Summary

• Depletion-mode GaN on SiC technology
• Internally matched common-source configuration
• Broadband Class AB operation capability
• High load mismatch tolerance up to 3:1 VSWR

Applications

• L-Band pulsed radar systems

Procurement Notes

Verify component authenticity through authorized MACOM channels or certified distributors. Confirm RoHS compliance status and check for specific package markings matching datasheet outline drawings. Ensure proper ESD handling protocols are followed during storage and assembly due to high sensitivity thresholds.

Selection Notes

Select this component for designs requiring high peak power density in L-Band frequencies. Evaluate thermal management requirements carefully, as junction temperature directly impacts MTTF. Ensure drive circuits can support the specified 300 μs pulse width and 10% duty cycle constraints for optimal performance.

Part Context

This part belongs to MACOM's MAGX series of RF power transistors utilizing advanced GaN-on-SiC fabrication processes. These devices are engineered to provide superior ruggedness and breakdown voltage compared to older semiconductor technologies, making them suitable for demanding military and aerospace environments.

Replacement Considerations

MAGX-L21214-650L00 is an evaluation board associated with this product family, not a direct functional replacement. No other specific substitute part numbers are documented in the provided source material.

FAQ

What is the recommended device sequencing for turning the MAGX-001214-650L00 ON?

Set VGS to pinch-off (typically -5 V), turn on VDS to nominal voltage (50 V), increase VGS until IDS current is reached, then apply RF power.

How does junction temperature affect the Mean Time To Failure (MTTF)?

MTTF is significantly higher when TJ is kept below 200°C (5.3 x 10^6 hours) compared to operation near the maximum limit of 250°C (6.8 x 10^4 hours).

What is the absolute maximum drain-source voltage rating?

The absolute maximum drain voltage (VDD) is rated at +65 V.
