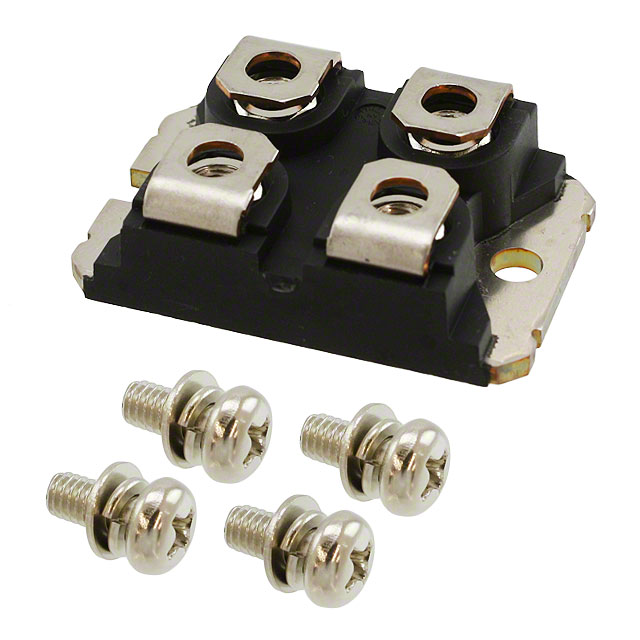

MBR200100CTS is listed in the Diode Arrays range at ChipApex. The manufacturer field lists GeneSiC Semiconductor. Its product description is DIODE MOD SCHOT 100V 200A SOT227. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for MBR200100CTS
- Description：DIODE MOD SCHOT 100V 200A SOT227
- Series：-
- Mfr：GeneSiC Semiconductor
- Package：Tube
- Diode Configuration：2 Independent
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io) (per Diode)：200A (DC)
- Voltage - Forward (Vf) (Max) @ If：950 mV @ 100 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：10 µA @ 80 V
- Operating Temperature - Junction：-40°C ~ 175°C
- Mounting Type：Screw Mount
- Package / Case：SOT-227-4
- Supplier Device Package：SOT-227
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for MBR200100CTS
Diode Arrays Overview
The MBR200100CTS is a silicon power Schottky diode module manufactured by GeneSiC Semiconductor. It utilizes an SOT-227 package and provides a repetitive peak reverse voltage of 100 V with a continuous forward current rating of 200 A at a case temperature of 85 °C. The device operates within a junction temperature range of -40 to 175 °C. Electrical characteristics include a typical forward voltage of 0.95 V at 100 A and 25 °C, and a maximum reverse current of 10 µA at 80 V. Thermal resistance from junction to case is specified at 1.87 °C/W.
Diode Arrays Feature Summary
- High surge capability for robust operation under transient conditions
- Electrically isolated base plate design for simplified thermal management
- Low forward voltage drop characteristic for improved efficiency
Diode Arrays Applications
- DC-DC converters
- Free-wheeling rectification in high-current circuits
- Power supply output stages
Diode Arrays Procurement Notes
Verify the specific ordering suffix against official GeneSiC documentation to confirm exact packaging and handling specifications. Confirm that the component meets all required environmental standards for the intended application environment before finalizing procurement orders.
Diode Arrays Selection Notes
Select this component when applications require high current handling up to 200 A combined with low forward voltage drops. Ensure the cooling solution can maintain the case temperature below 85 °C to sustain the rated continuous forward current without exceeding thermal limits.
Diode Arrays Part Context
This part belongs to the GeneSiC Silicon Power Schottky Diode series designed for high-efficiency power conversion. The SOT-227 package offers a compact footprint suitable for industrial power modules where space constraints and thermal performance are critical factors in system design.
Diode Arrays Replacement Considerations
Consult official GeneSiC cross-reference lists for verified substitutes. Ensure any replacement maintains identical pinout configurations and electrical ratings to prevent circuit incompatibility.
Explore related parts through Rectifiers, Diodes, Discrete Semiconductor Products, all product categories.
