MBRS6040CTH

Diode Arrays Overview

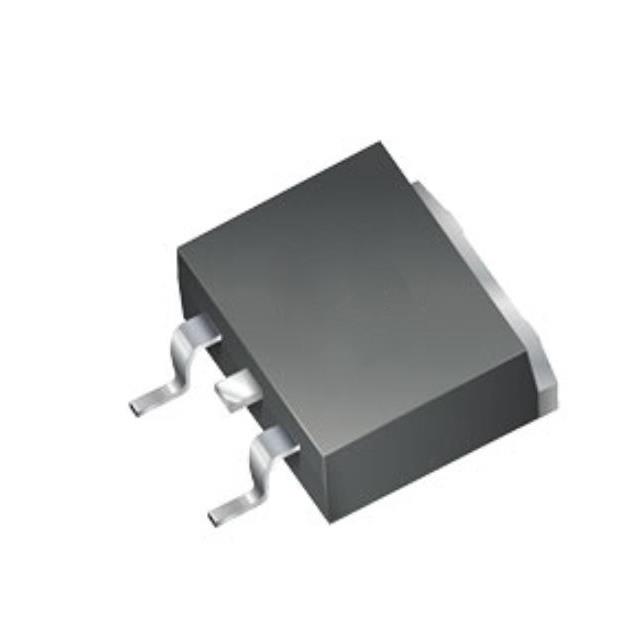

The MBRS6040CTH is a 60A, 40V Schottky Barrier Surface Mount Rectifier manufactured by Taiwan Semiconductor. It features a dual-die configuration in a TO-263AB (D2PAK) package. Key electrical parameters include a repetitive peak reverse voltage of 40V and a forward current rating of 60A. The device supports a surge peak forward current of 250A and operates within a junction temperature range of -55°C to +150°C. It exhibits low forward voltage characteristics, with typical values of 0.75V at 30A and 1.05V at 60A at 25°C. The component is AEC-Q101 qualified and meets RoHS standards.

Diode Arrays Feature Summary

• Guard ring structure provides enhanced overvoltage protection capabilities.
• High surge current capability ensures robustness against transient load conditions.
• Low power loss design contributes to high efficiency in switching applications.
• Moisture sensitivity level 1 classification facilitates reliable automated placement processes.

Diode Arrays Applications

• Low voltage, high frequency inverters
• DC/DC converter circuits
• Freewheeling diode implementations
• Reverse battery protection systems
• Car lighting assemblies

Diode Arrays Procurement Notes

Verify the specific ordering code MBRS6040CTH matches the required TO-263AB package and tape & reel packing quantity of 800 units per reel. Confirm that the AEC-Q101 qualification status aligns with automotive or industrial reliability requirements. Ensure the marking code MBRS6040CT is present for identification. Check for RoHS compliance and halogen-free status according to IEC 61249-2-21 specifications before finalizing procurement orders.

Diode Arrays Selection Notes

Select this component for applications requiring high current handling up to 60A with low forward voltage drop to minimize conduction losses. The TO-263AB package offers suitable thermal performance with a junction-to-case thermal resistance of 1°C/W. Consider the 40V reverse voltage rating for low-voltage DC/DC converters. The dual-die configuration allows for efficient space utilization in surface mount designs while maintaining high surge current tolerance.

Diode Arrays Part Context

This part belongs to the MBRS series of Schottky barrier rectifiers from Taiwan Semiconductor. It is designed for surface mount technology applications where low forward voltage and high efficiency are critical. The device utilizes advanced semiconductor processing to achieve high reliability and performance in compact packages suitable for automated assembly lines.

Diode Arrays Replacement Considerations

Consult official substitution guides for compatible parts with matching 60A current ratings and 40V reverse voltage specifications. Verify pinout compatibility and thermal resistance values when replacing with alternative manufacturers' components. Ensure any substitute maintains the same TO-263AB package dimensions and mounting requirements.

Diode Arrays FAQ

What is the maximum junction temperature for the MBRS6040CTH?

The maximum operating junction temperature is +150°C.

Does the MBRS6040CTH have automotive qualification?

Yes, the device is AEC-Q101 qualified.

What is the typical forward voltage at 60A?

The typical forward voltage is 1.05V at an forward current of 60A and a junction temperature of 25°C.
