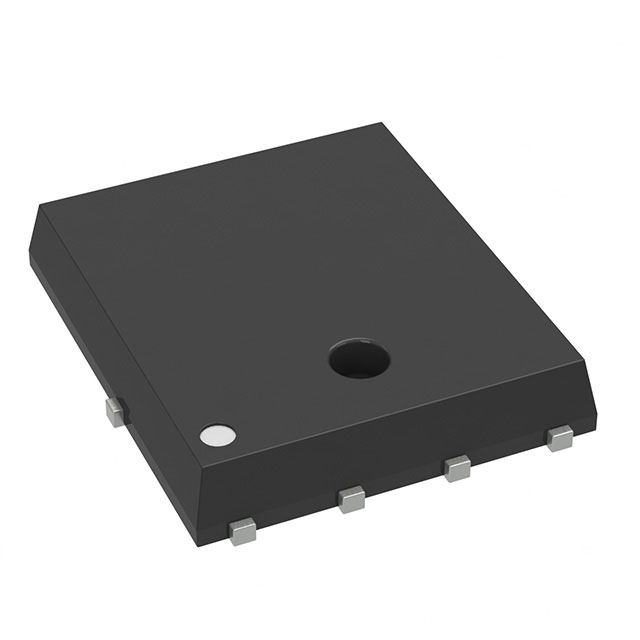

MCAC16N03-TP

Description：MOSFET N-CH 30 16A DFN5060
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Bulk

SKU:fdbfd46f40d9 Category: Single FETs, MOSFETs Brand: MCC (Micro Commercial Components)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MCAC16N03-TP is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is MOSFET N-CH 30 16A DFN5060. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for MCAC16N03-TP

Description：MOSFET N-CH 30 16A DFN5060
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Bulk
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：30 V
Current - Continuous Drain (Id) @ 25°C：16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：9mOhm @ 10A, 10V
Vgs(th) (Max) @ Id：3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：15 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1530 pF @ 15 V
FET Feature：-
Power Dissipation (Max)：30W
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：DFN5060
Package / Case：8-PowerTDFN

Single FETs, MOSFETs datasheet and documents for MCAC16N03-TP

MCAC16N03-TP

Single FETs, MOSFETs Overview

The MCAC16N03-TP is a silicon N-channel MOSFET manufactured by Micro Commercial Components (MCC). It features a DFN5060-8L surface-mount package. The device provides a drain-source voltage rating of 30V and a gate-source voltage limit of ±20V. At a case temperature of 25°C, the continuous drain current is rated at 16A, with a pulsed current capacity of 50A. Total power dissipation is specified as 70W under standard mounting conditions. The component operates within a junction temperature range of -55°C to +150°C.

Single FETs, MOSFETs Feature Summary

Epoxy compound meets UL 94 V-0 flammability rating for enhanced safety.
Manufactured as a halogen-free 'Green' device compliant with environmental standards.
RoHS compliant construction with lead-free finish.
Rated at Moisture Sensitivity Level 1 for reliable handling.

Single FETs, MOSFETs Applications

Power management circuits requiring low-voltage switching
DC-DC converter topologies
Load switching applications

Single FETs, MOSFETs Procurement Notes

Verify authenticity through authorized channels due to industry counterfeiting risks. MCC requires written approval for life support usage. Confirm RoHS compliance status via official documentation before integration. Ensure storage conditions align with the specified moisture sensitivity level to maintain component integrity during assembly processes.

Single FETs, MOSFETs Selection Notes

Select this component for designs necessitating a 30V N-channel switch in a compact DFN5060-8L footprint. Evaluate thermal performance against the 4.2°C/W junction-to-case resistance for heat dissipation requirements. Consider the 16A continuous current rating relative to circuit load demands and operating temperature constraints.

Single FETs, MOSFETs Part Context

This part belongs to the MCC N-channel MOSFET family utilizing split-gate trench technology. It is designed for general-purpose switching applications where low on-resistance and high efficiency are prioritized. The DFN5060-8L package facilitates automated surface-mount assembly while providing robust thermal characteristics for power electronics.

Single FETs, MOSFETs Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical parameters when considering alternative manufacturers.
