MCACD6D5N03L-TP

FET, MOSFET Arrays Overview

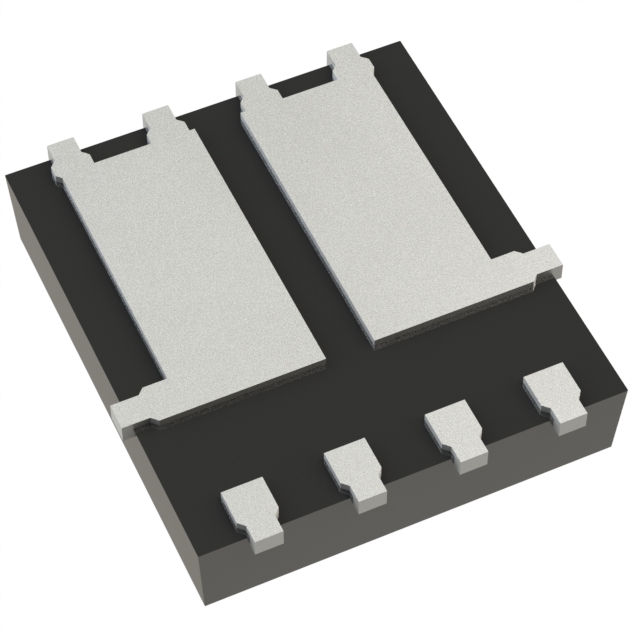

The MCACD6D5N03L-TP is a dual N-channel enhancement mode MOSFET manufactured by Micro Commercial Components. It utilizes a PDFN5060-8D surface-mount package designed for high-efficiency power switching applications. The device features a drain-source voltage (Vds) rating of 30 V and a continuous drain current (Id) capacity of 60 A at case temperature. Key electrical characteristics include a maximum on-resistance (Rds(on)) of 6.5 mΩ, ensuring low conduction losses. The gate-source voltage (Vgs) withstands ±20 V, with a typical threshold voltage of 2.5 V. Operating temperatures range from -55°C to +150°C, supporting robust thermal performance in demanding electronic circuits.

FET, MOSFET Arrays Feature Summary

• Dual N-channel configuration within a single compact package
• Low on-resistance for efficient power management
• Enhanced thermal stability across wide temperature ranges

FET, MOSFET Arrays Applications

• DC-DC converter modules
• Power distribution units
• Motor control circuits

FET, MOSFET Arrays Procurement Notes

Verify the specific datasheet version and component marking codes upon receipt to ensure authenticity. Confirm that the received parts match the MCACD6D5N03L-TP designation exactly. Check for any manufacturer notices regarding moisture sensitivity levels or handling requirements prior to assembly. Ensure storage conditions comply with the specified environmental limits to maintain device integrity during procurement and inventory holding periods.

FET, MOSFET Arrays Selection Notes

Select this component when a dual N-channel topology is required in a space-constrained design. The 30 V rating suits low-voltage DC systems. The 60 A current capability supports moderate load applications. Consider the PDFN5060-8D footprint compatibility with existing PCB layouts. Evaluate thermal dissipation needs against the 6.5 mΩ on-resistance to ensure adequate heat sinking for the intended operational duty cycle.

FET, MOSFET Arrays Part Context

This part belongs to MCC's series of surface-mount power MOSFETs. It integrates two independent N-channel transistors into one unit. This integration reduces board space compared to discrete solutions. The PDFN5060-8D package provides improved thermal conductivity. It targets applications requiring reliable switching in consumer electronics and industrial control systems.

FET, MOSFET Arrays Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical specifications carefully if considering alternative manufacturers. Ensure any replacement matches the 30 V Vds and dual-channel configuration.
