Product Detailed Parameters
- Description：JFET 2N-CH 50MA 5MCPH
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：2 N-Channel (Dual)
- Voltage - Breakdown (V(BR)GSS)：-
- Drain to Source Voltage (Vdss)：-
- Current - Drain (Idss) @ Vds (Vgs=0)：16 mA @ 5 V
- Current Drain (Id) - Max：50 mA
- Voltage - Cutoff (VGS off) @ Id：300 mV @ 100 µA
- Input Capacitance (Ciss) (Max) @ Vds：10.5pF @ 5V
- Resistance - RDS(On)：-
- Power - Max：300 mW
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：5-SMD, Flat Leads
- Supplier Device Package：5-MCPH
- Grade：-
- Qualification：-
Download product information
Overview

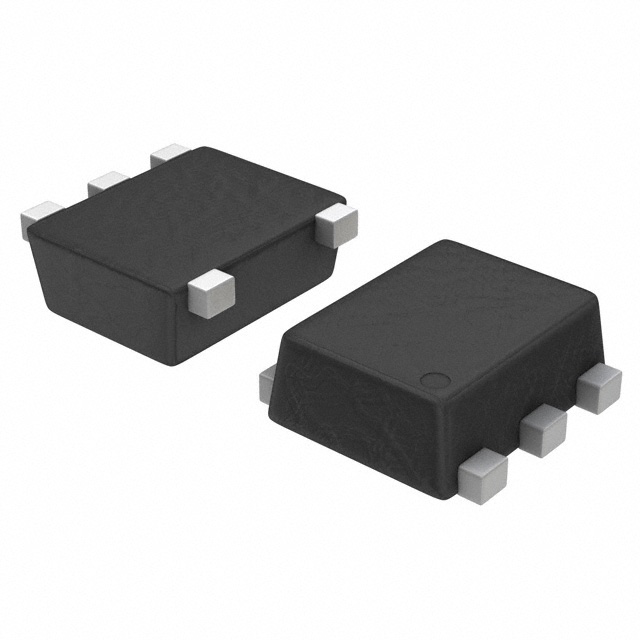

The MCH5908H-TL-E is a dual N-channel JFET manufactured by onsemi. It utilizes silicon technology and belongs to the MCH5908 series. The device is designed for surface-mount applications, housed in a compact package suitable for automated assembly processes. It supports RoHS compliance standards.
Feature Summary
- Dual configuration integrating two independent N-channel junction field-effect transistors within a single component.
- Silicon-based construction providing stable performance characteristics for signal processing tasks.
Applications
- Analog signal switching circuits
- Voltage-controlled resistor implementations
- Low-noise amplifier input stages
Procurement Notes
Verify the specific package designation against the official datasheet to ensure mechanical compatibility with the intended PCB footprint. Confirm that the ordering suffix matches the required tape-and-reel quantity specifications. Cross-reference the manufacturer part number with current onsemi documentation to validate active status and any recent lead frame material changes announced in product change notices.
Selection Notes
Select this component when a compact dual JFET solution is required for analog signal routing or attenuation. Evaluate the package dimensions against available board space constraints. Ensure the circuit design requirements align with the electrical characteristics defined in the official specification sheet for optimal performance.
Part Context
This component is part of onsemi's discrete transistor portfolio, specifically categorized under JFETs. It serves as a building block for analog electronics, offering a dual-transistor alternative to using separate single JFET packages. The product line focuses on providing reliable silicon-based switching and amplification capabilities for various electronic systems.
Replacement Considerations
Consult the official onsemi website or authorized distributor databases for verified substitute part numbers. Do not assume functional equivalence based solely on package similarity. Verify pinout compatibility and electrical parameter alignment before considering any alternative components.
