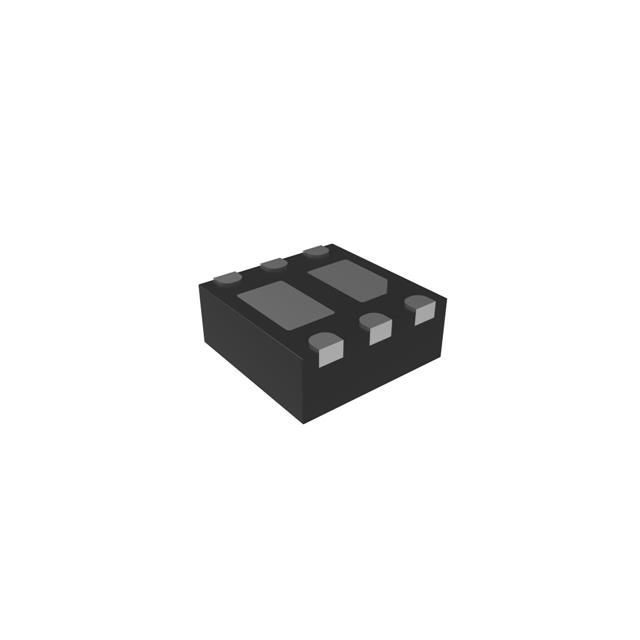

MCMNP517-TP

$0.40

Description：MOSFET N/P-CH 12V 6A/4.1A 6DFN
Series：-

SKU:a8a03fce97d7 Category: FET, MOSFET Arrays Brand: MCC (Micro Commercial Components)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MCMNP517-TP is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is MOSFET N/P-CH 12V 6A/4.1A 6DFN. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for MCMNP517-TP

Description：MOSFET N/P-CH 12V 6A/4.1A 6DFN
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：N and P-Channel
FET Feature：Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)：12V
Current - Continuous Drain (Id) @ 25°C：6A, 4.1A
Rds On (Max) @ Id, Vgs：24mOhm @ 6A, 10V
Vgs(th) (Max) @ Id：1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：630pF @ 10V
Power - Max：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：6-VDFN Exposed Pad
Supplier Device Package：DFN2020-6U
Grade：-
Qualification：-

FET, MOSFET Arrays datasheet and documents for MCMNP517-TP

MCMNP517-TP

FET, MOSFET Arrays Overview

The MCMNP517-TP is a dual N and P-channel enhancement mode field effect transistor manufactured by Micro Commercial Components. This silicon-based MOSFET integrates complementary channel types within a single package to facilitate efficient circuit design. The component serves as a compact solution for applications requiring both high-side and low-side switching capabilities in a minimal footprint.

FET, MOSFET Arrays Feature Summary

Integrates complementary N-channel and P-channel enhancement mode transistors into a single dual package
Utilizes silicon technology for reliable semiconductor performance
Designed for compact integration in space-constrained electronic circuits

FET, MOSFET Arrays Applications

Complementary switching circuits
Dual-channel power management modules
Signal routing interfaces requiring paired N/P control

FET, MOSFET Arrays Procurement Notes

Verify the specific suffix designation against official Micro Commercial Components documentation to confirm exact electrical characteristics and pinout configuration. Ensure the selected variant matches the required thermal and voltage specifications for the target application environment before procurement.

FET, MOSFET Arrays Selection Notes

Select this component when a matched pair of N and P-channel MOSFETs is required for synchronized operation. Consider the package type and thermal dissipation requirements relative to the intended load current. Confirm compatibility with the driving logic levels for both channel types.

FET, MOSFET Arrays Part Context

This part belongs to the MCMNP series of dual MOSFETs from Micro Commercial Components. It represents a consolidated discrete solution replacing separate N and P-channel devices, reducing board space and simplifying assembly processes in modern consumer and industrial electronics.
