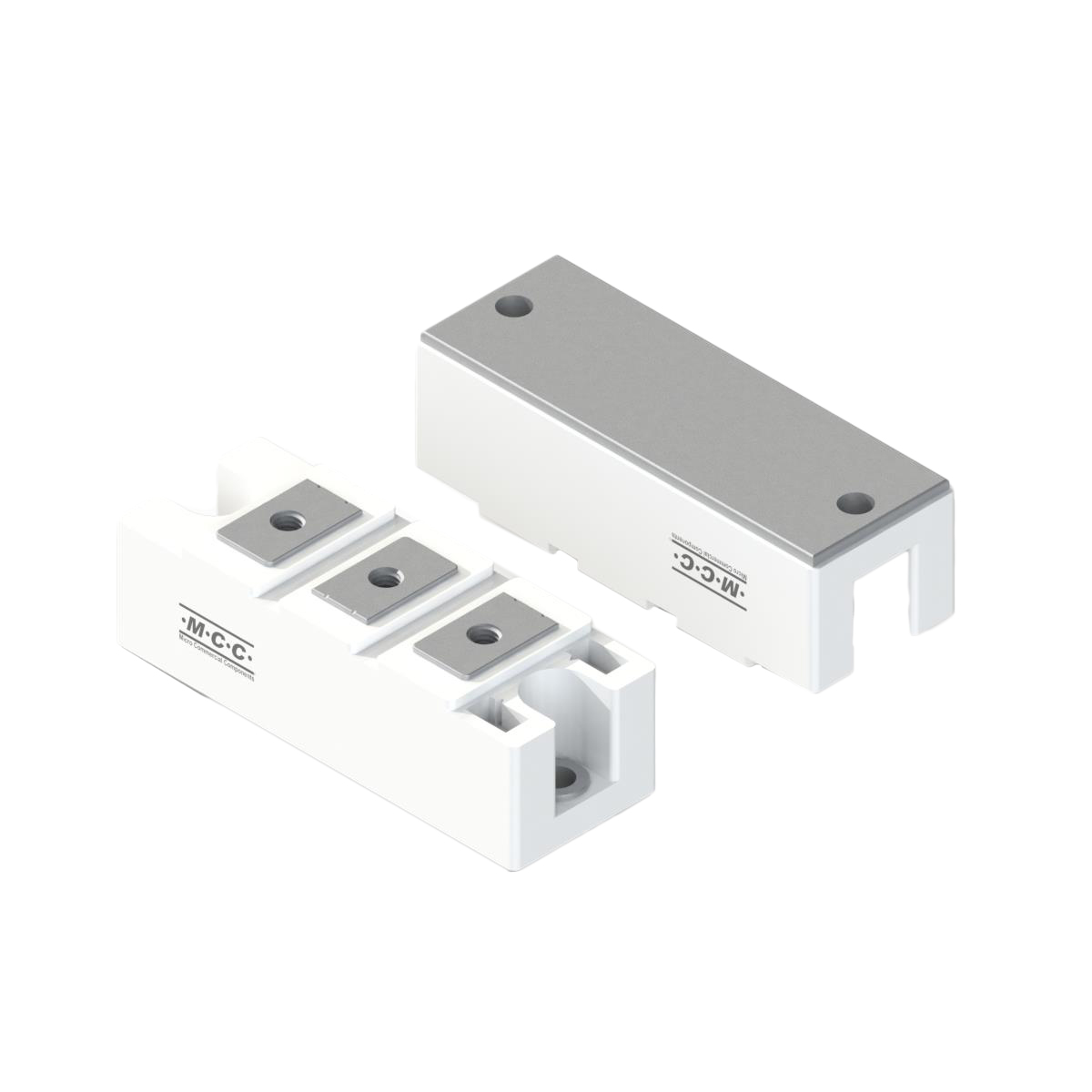

MD200K12D2-BP

$40.52

Description：DIODE MODULE GP 1200V 200A D2
Series：-

SKU:3bf6c267b40e Category: Diode Arrays Brand: MCC (Micro Commercial Components)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE MODULE GP 1200V 200A D2
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR)
Diode Configuration：1 Pair Common Cathode
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1200 V
Current - Average Rectified (Io) (per Diode)：200A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 300 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：9 mA @ 1200 V
Operating Temperature - Junction：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：D2
Grade：-
Qualification：-

Download product information

MD200K12D2-BP

Overview

The MD200K12D2-BP is a silicon discrete semiconductor module manufactured by Micro Commercial Components. It features a D2 package with screw mount installation style. The device operates within a temperature range of -40°C to +150°C and has a unit weight of 164 g.

Feature Summary

Utilizes silicon technology for power handling
Designed for screw mount installation in the D2 package
Supports high-temperature operation up to +150°C

Applications

Industrial power conversion systems
High-voltage rectification circuits
Power supply modules requiring robust thermal performance

Procurement Notes

Verify component authenticity through official MCC channels or authorized distributors. Confirm RoHS compliance status via current datasheets. Check for regional sales restrictions as availability may vary by location. Ensure proper handling procedures are followed due to the heavy screw-mount package design.

Selection Notes

Select this module when high voltage blocking capability and standard recovery characteristics are required. The D2 package offers mechanical stability for industrial environments. Verify thermal management requirements align with the specified operating temperature range before integration into final designs.

Part Context

This part belongs to the MD200K12D2 series from Micro Commercial Components. It is categorized under discrete semiconductor modules and diode modules. The product line focuses on standard recovery power applications using silicon technology.

Replacement Considerations

Consult official MCC documentation for verified substitute part numbers. Cross-reference electrical parameters such as reverse voltage and forward voltage drop carefully. Ensure mechanical compatibility with existing mounting structures.
