Product Detailed Parameters
- Description：DIODE MODULE GP 800V 36A D1
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：800 V
- Current - Average Rectified (Io) (per Diode)：36A
- Voltage - Forward (Vf) (Max) @ If：1.4 V @ 100 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：5 mA @ 800 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：D1
- Grade：-
- Qualification：-
Download product information
Overview

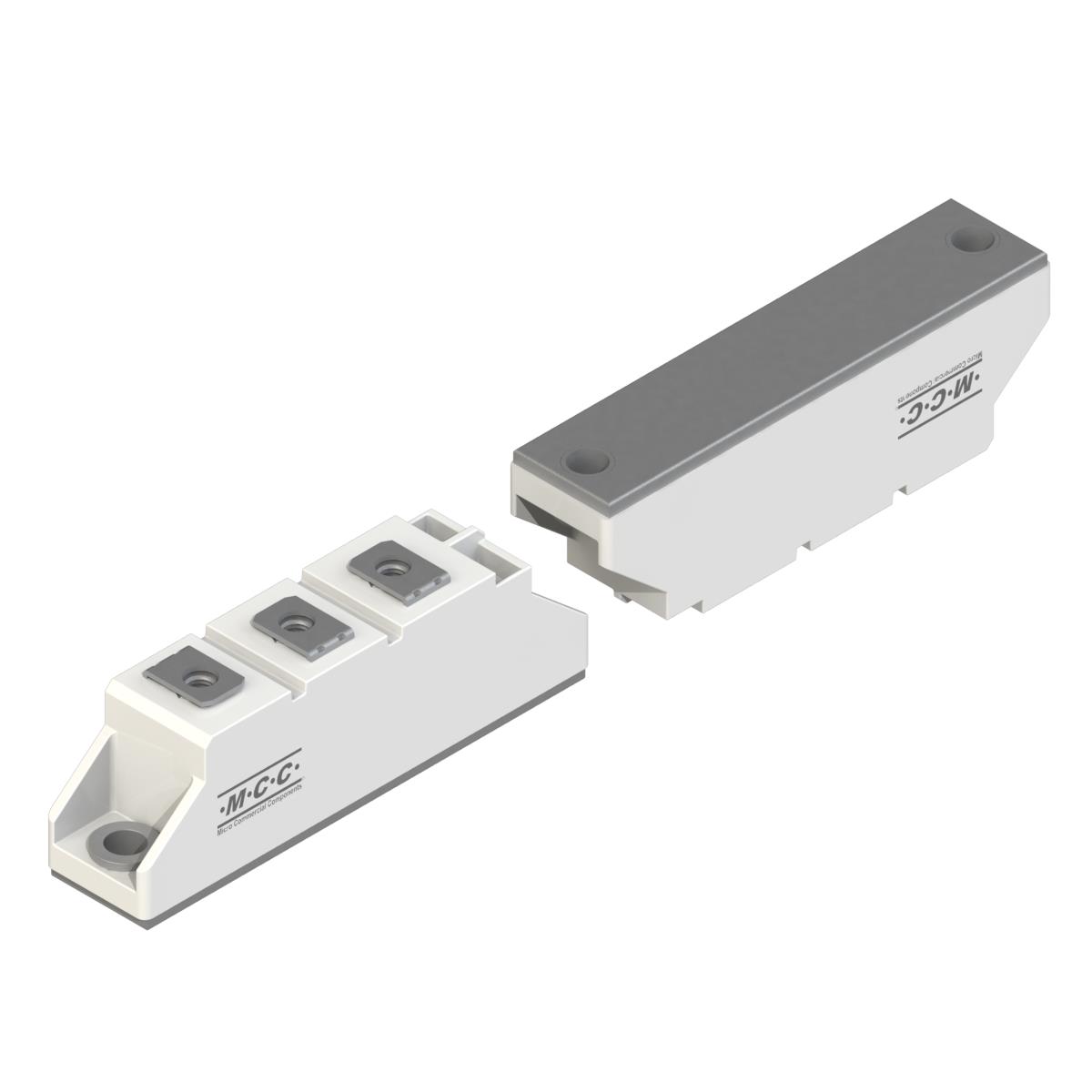

The MD36C08D1-BP is a discrete semiconductor module manufactured by Micro Commercial Components (MCC). It utilizes silicon technology and belongs to the MD36C08D1 series. The component is classified as a glass passivated rectifier diode module. It is supplied in bulk packaging with a factory pack quantity of 10 units.
Feature Summary
- Glass passivation for enhanced junction protection
- Silicon-based construction for reliable operation
Applications
- General purpose rectification in power circuits
- Industrial power supply modules
- Discrete semiconductor assemblies
Procurement Notes
Verify the specific datasheet version before integration, as manufacturing specifications may evolve. Confirm that the bulk packaging format aligns with your assembly line handling capabilities. Ensure the silicon technology meets your thermal and electrical requirements for the intended application environment.
Selection Notes
Select this module when a robust, glass-passivated silicon rectifier solution is required. The D1 package style facilitates screw mounting or board integration depending on the specific mechanical design. Consider the series compatibility if multiple voltage ratings are needed within the same system architecture.
Part Context
This part falls under MCC's discrete semiconductor module portfolio. It shares the MD36C08D1 series designation with similar variants, indicating a standardized platform for rectifier applications. The -BP suffix typically denotes specific compliance or packaging attributes defined by the manufacturer.
