Product Detailed Parameters

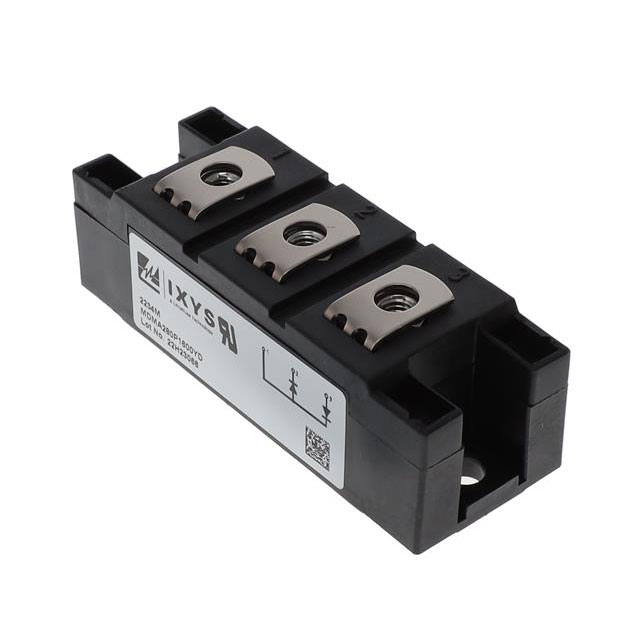

- Description：DIODE MODULE GP 1600V 280A Y4-M6
- Series：MDMA280P1600YD
- Mfr：IXYS
- Package：Box
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1600 V
- Current - Average Rectified (Io) (per Diode)：280A
- Voltage - Forward (Vf) (Max) @ If：1.14 V @ 280 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：1 mA @ 1600 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Y4-M6
- Supplier Device Package：Y4-M6
- Grade：-
- Qualification：-
Download product information
Overview
The MDMA280P1600YD is a silicon SCR module manufactured by IXYS, designed for phase leg applications. It features a Y4 package with screw mount installation and operates within a temperature range of -40°C to +125°C. The device has a rated repetitive off-state voltage (VDRM) of 1.6 kV. It is classified under thyristors and utilizes standard bulk packaging.
Feature Summary
- Integrated phase leg circuit configuration for controlled rectification
- Robust Y4 package construction suitable for high-power thermal management
- Direct screw mounting interface for secure mechanical attachment
Applications
- Industrial power conversion systems
- High-voltage DC transmission components
- Motor drive control circuits
Procurement Notes
Verify the specific datasheet version for the MDMA280P1600YD to confirm exact electrical tolerances and thermal characteristics before integration. Ensure that the Y4 package dimensions match the intended heatsink or chassis layout. Confirm compliance requirements such as RoHS status through official manufacturer documentation rather than distributor summaries.
Selection Notes
Select this component when a dedicated phase leg topology is required for 1.6 kV applications. The Y4 package offers a balance of current handling and physical footprint. Compare against other IXYS modules like the MDMA600P1600PTSF if additional features such as NTC thermistors are needed for thermal monitoring in the final assembly.
Part Context
This part belongs to the IXYS MDMA series of silicon-controlled rectifier modules. These modules are engineered for line-frequency operations and utilize planar passivated chips. The series is widely used in heavy industrial environments where reliable high-current switching is critical for power electronics infrastructure.
Replacement Considerations
Publicly confirmed substitute part numbers for the MDMA280P1600YD were not identified in the provided source material. Verify compatibility with similar IXYS phase leg modules only after cross-referencing detailed pinout and electrical parameter datasheets.
