Product Detailed Parameters
- Description：IC
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1200 V
- Current - Average Rectified (Io) (per Diode)：200A
- Voltage - Forward (Vf) (Max) @ If：2.3 V @ 200 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：57 ns
- Current - Reverse Leakage @ Vr：1 mA @ 1.2 kV
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：F5
- Grade：-
- Qualification：-
Download product information
Overview

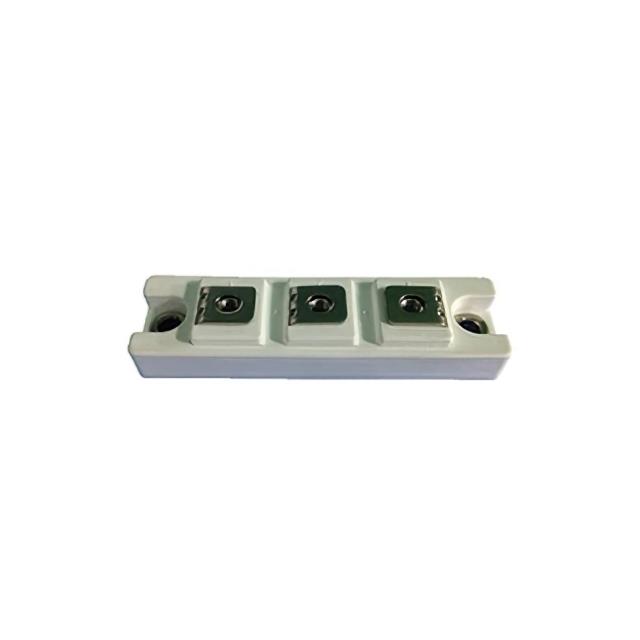

The MF200K12F5-BP is a silicon Fast Recovery Epitaxial Diode (FRED) module manufactured by Micro Commercial Components. It features a single diode configuration with a maximum repetitive reverse voltage of 700 V and a forward voltage drop of 1.2 V. The component supports screw mount installation and operates within a temperature range of -40°C to +150°C junction temperature. Packaged in bulk, it belongs to the FRED Modules product line designed for high-power discrete semiconductor applications.
Feature Summary
- Utilizes silicon fast recovery epitaxial diode technology for efficient switching performance.
- Designed for screw mount installation to facilitate secure mechanical attachment.
- Operates reliably across an extended temperature range from -40°C to +150°C.
Applications
- High-frequency power conversion circuits
- Industrial motor drive systems
- Uninterruptible power supply (UPS) units
Procurement Notes
Verify the specific datasheet revision and electrical characteristics directly with Micro Commercial Components or authorized distributors before integration. Confirm that the 700 V rating aligns with system requirements. Check current availability status as supply constraints may affect lead times. Ensure proper thermal management solutions are implemented given the screw mount package type.
Selection Notes
Select this module when a single-channel fast recovery diode with 700 V blocking capability is required. Compare the 1.2 V forward voltage against alternative series configurations if lower conduction losses are critical. Evaluate the screw mount footprint against available board space and cooling infrastructure. Consider the operating temperature limits relative to the expected ambient conditions of the final assembly.
Part Context
This component is part of the MF200 series of discrete semiconductor modules from Micro Commercial Components. The series includes various voltage ratings and configurations, such as the MF200C12F2-BP which offers a 1200 V rating in a dual diode setup. The MF200K12F5-BP specifically targets applications requiring robust single-diode performance at intermediate voltage levels.
FAQ
What is the maximum junction temperature for the MF200K12F5-BP?
The maximum operating junction temperature is +150°C.
Is the MF200K12F5-BP available in a surface-mount package?
No, the specified installation style for this module is screw mount.
What is the forward voltage drop at rated current?
The forward voltage (Vf) is specified as 1.2 V.
