MG1225H-XBN2MM

$61.95

Description：IGBT MOD 1200V 25A 105W
Series：-

SKU:abb08e663699 Category: IGBT Modules Brand: Littelfuse Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 25A 105W
Series：-
Mfr：Littelfuse Inc.
Package：Bulk
IGBT Type：-
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：1.7V @ 15V, 25A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：25 A
Power - Max：105 W
Current - Collector Cutoff (Max)：50 µA
Input Capacitance (Cies) @ Vce：1.1 nF @ 25 V

Download product information

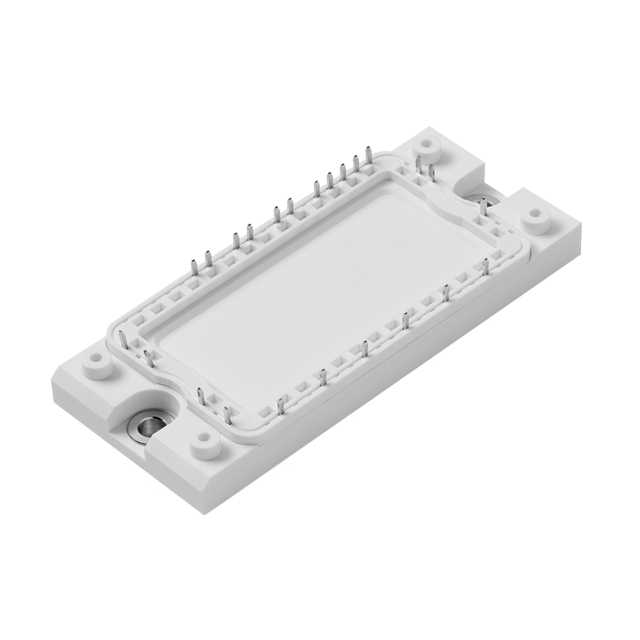

MG1225H-XBN2MM

Overview

The MG1225H-XBN2MM is a high-level integrated power module manufactured by Littelfuse. It incorporates an IGBT3 chip utilizing Trench and Field Stop technology, designed for applications requiring fast switching and short tail current characteristics. The device features low saturation voltage with a positive temperature coefficient to enhance thermal stability. Integrated free-wheeling diodes provide fast and soft reverse recovery performance. The module includes solderable pins for printed circuit board mounting and contains an integrated temperature sense feature for precise thermal monitoring.

Feature Summary

High level of integration combining IGBT and diode functions
IGBT3 chip with Trench and Field Stop technology
Low saturation voltage and positive temperature coefficient
Fast switching and short tail current performance
Integrated temperature sense capability

Applications

AC motor control systems
Motion and servo control applications
Inverter and power supply designs

Part Context

This component belongs to the MG1225H series of intelligent power modules from Littelfuse. These modules are engineered for compact power conversion solutions. The specific XBN2MM variant represents a configuration within this family, sharing core technological attributes such as the IGBT3 chip architecture and integrated sensing capabilities found across the series.

Replacement Considerations

Publicly confirmed substitute part numbers for the MG1225H-XBN2MM were not identified in the provided documentation. Verification of pin compatibility and electrical ratings is required when considering alternative components.
