Product Detailed Parameters
- Description：IGBT MODULE 1200V 450A 1450W D3
- Series：-
- Mfr：Littelfuse Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：3.2V @ 15V, 300A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：D-3 Module
- Supplier Device Package：D3
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：450 A
- Power - Max：1450 W
- Current - Collector Cutoff (Max)：2 mA
- Input Capacitance (Cies) @ Vce：22 nF @ 25 V
Download product information
Overview

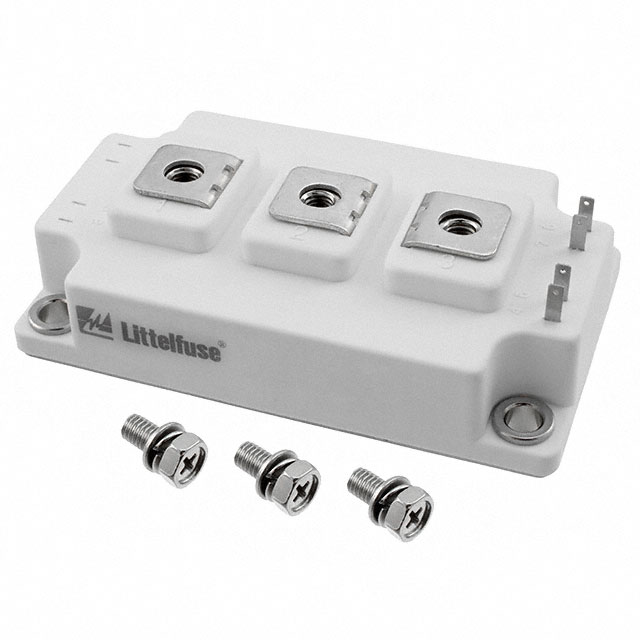

The Littelfuse MG12300D-BN3MM is a 1200V IGBT power module featuring NPT technology and integrated free-wheeling diodes. It provides a DC collector current of 450A at 25°C and handles repetitive peak currents up to 600A. The device exhibits a saturation voltage of 3.2V at 300A and 25°C, with a maximum junction temperature of 150°C. Key electrical parameters include a gate-emitter threshold voltage ranging from 4.5V to 6.5V and an integrated gate resistor of 1.3Ω. Thermal resistance from junction to case is 0.085 K/W for the IGBT and 0.15 K/W for the diode.
Feature Summary
- High short circuit capability with self-limiting short circuit current
- Fast switching performance characterized by short tail current
- Free-wheeling diodes engineered for fast and soft reverse recovery
- Collector-emitter saturation voltage features a positive temperature coefficient
Applications
- Motor drives
- Inverters and converters
- SMPS and UPS systems
- Welding equipment
- Induction heating
Procurement Notes
Verify the specific ordering suffix BN3MM against official Littelfuse documentation to confirm package type D assembly details. Confirm that bulk packing options align with project requirements, as MOQs may apply. Ensure thermal interface materials are compatible with the recommended mounting torque specifications for reliable heat dissipation during operation.
Selection Notes
Select this module for applications requiring robust 1200V blocking capability and high current handling up to 450A. Consider the positive temperature coefficient of VCE(sat) for parallel operation stability. Evaluate the 150°C maximum junction temperature against your system's thermal management strategy to ensure safe operating area compliance under varying load conditions.
Part Context
This component belongs to the Littelfuse 1200V IGBT family, designed for high-power industrial applications. It utilizes Non-Punch-Through (NPT) technology to enhance reliability and switching speed. The module integrates both IGBT and free-wheeling diode chips in a single package to simplify circuit design and reduce board space requirements for power conversion systems.
Replacement Considerations
Consult Littelfuse technical support for verified cross-reference part numbers. Ensure any substitute matches the 1200V rating, 300A/450A current capabilities, and Package D dimensions. Verify compatibility with existing gate drive circuits regarding the 1.3Ω internal gate resistance.
