Product Detailed Parameters
- Description：IGBT MOD 1200V 75A 260W
- Series：-
- Mfr：Littelfuse Inc.
- Package：Bulk
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.7V @ 15V, 50A (Typ)
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：260 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：3.6 nF @ 25 V
Download product information
Overview

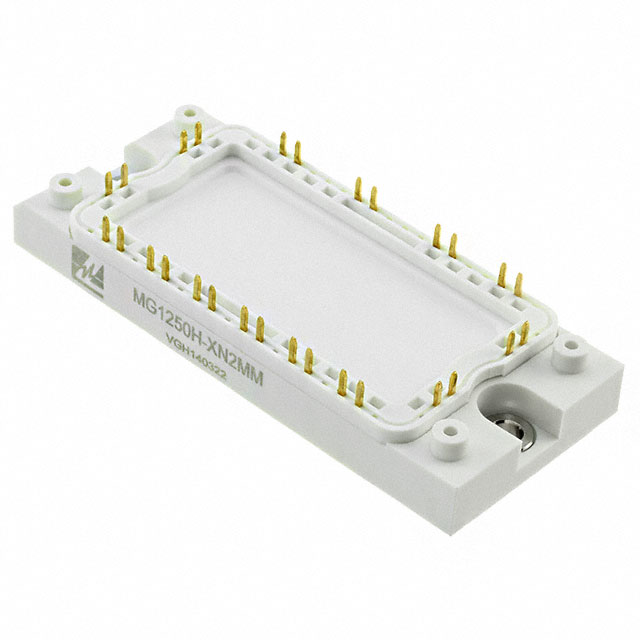

The MG1250H-XN2MM is a power semiconductor module manufactured by Littelfuse, designed for AC motor control applications. It integrates insulated gate bipolar transistors (IGBTs) and associated diodes within a single package to facilitate efficient power conversion. The component utilizes a standardized mechanical form factor compatible with industry-standard mounting configurations, ensuring reliable thermal management and electrical connectivity in high-power environments.
Feature Summary
- Integrated IGBT and diode configuration for compact power stage implementation
- Designed for robust performance in AC motor drive systems
- Utilizes standard industrial mounting interface for simplified integration
Applications
- AC motor control systems
- Industrial motor drives
- Power conversion units
Procurement Notes
Verify the specific datasheet revision and ordering suffix when sourcing the MG1250H-XN2MM. Confirm that the received component matches the Littelfuse part number exactly. Check for physical integrity of the module housing and terminal surfaces prior to installation. Ensure storage conditions align with manufacturer guidelines to prevent moisture absorption or contamination before assembly.
Selection Notes
Select this module based on its suitability for AC motor control architectures requiring integrated switching elements. Evaluate thermal resistance characteristics against the system's heat sink capabilities. Verify voltage and current ratings meet the operational requirements of the target motor drive circuit. Consider the mechanical footprint compatibility with existing PCB or busbar layouts during the design phase.
Part Context
This component belongs to Littelfuse's portfolio of power modules focused on motor control solutions. The MG series typically denotes specific voltage and current classes within their IGBT module lineup. These devices are engineered to replace discrete component arrangements, offering improved reliability and reduced board space consumption in industrial power electronics designs.
Replacement Considerations
Consult official Littelfuse documentation for direct cross-reference data. Verify pinout compatibility and thermal specifications before substituting with alternative manufacturers' parts. Ensure any replacement device meets the same electrical ratings and mechanical dimensions required by the original design.
