Product Detailed Parameters
- Description：IC
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 450A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：E3
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：450 A
- Power - Max：2.34 kW
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：25000 pF @ 25 V
Download product information
Overview

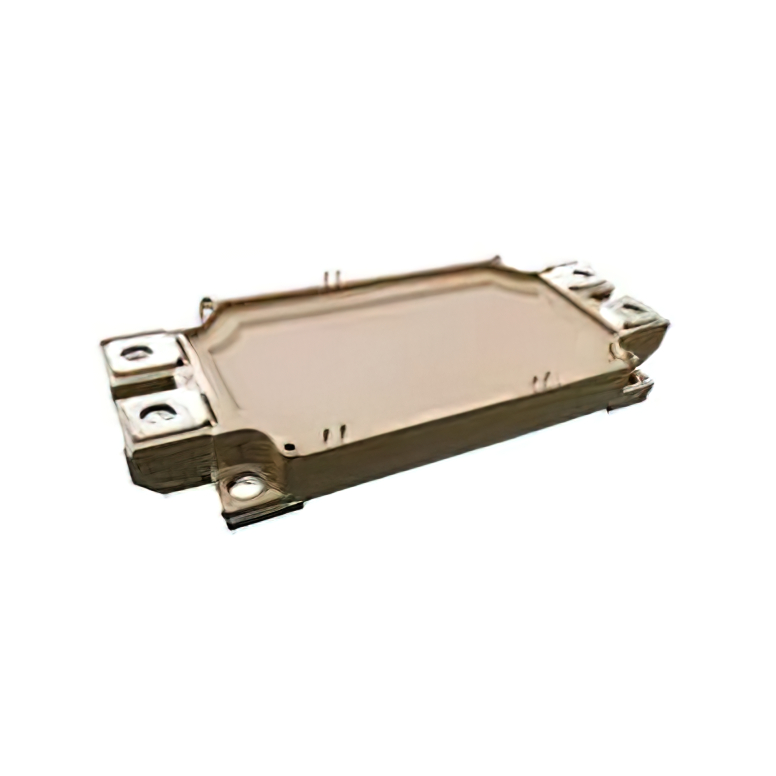

The MIF450R12E3TL-BP is an IGBT module manufactured by Micro Commercial Components (MCC). It utilizes silicon technology and belongs to the MIF450R12C2TL series. The component is classified under IGBT modules within the broader IGBTs subcategory. It is supplied in bulk packaging with a trademark of Micro Commercial Components. The product adheres to RoHS compliance standards. Factory packaging quantity is listed as 6 units per pack.
Feature Summary
- Utilizes silicon-based semiconductor technology for power switching applications.
- Designed as a dual IGBT module configuration for high-power circuits.
- Compliant with RoHS environmental directives for restricted hazardous substances.
Applications
- Industrial motor drive systems requiring high current handling.
- High-power inverter circuits for renewable energy conversion.
- Uninterruptible power supply (UPS) topologies.
Procurement Notes
Verify the exact part number suffix against official MCC documentation, as variations such as C2TL or E3TL may exist. Confirm RoHS status directly from the manufacturer's datasheet before integration. Check current availability status as distribution channels may report limited stock or discontinuation notices. Ensure the bulk packaging format aligns with automated assembly requirements if applicable.
Selection Notes
Select this module based on its classification as a silicon IGBT device suitable for medium to high-power applications. Consider the dual configuration for bridge circuit implementations. Verify thermal management requirements against the module's power dissipation capabilities. Ensure compatibility with gate drive voltages specified in the official electrical characteristics table.
Part Context
This component is part of the MIF450R12C2TL series produced by Micro Commercial Components. It falls under the general category of IGBT modules used in power electronics. The specific designation indicates a silicon-based construction. MCC positions this product within their portfolio of discrete and module semiconductors for industrial and commercial power conversion markets.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing with other manufacturers requires independent verification of electrical parameters and pinout configurations. Consult official replacement guides from MCC for any direct equivalents within their own product line.
