Product Detailed Parameters
- Description：IC
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- IGBT Type：Trench
- Configuration：Single Switch
- Vce(on) (Max) @ Vge, Ic：2.5V @ 15V, 600A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：3.48 kW
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：101500 pF @ 25 V
Download product information
Overview

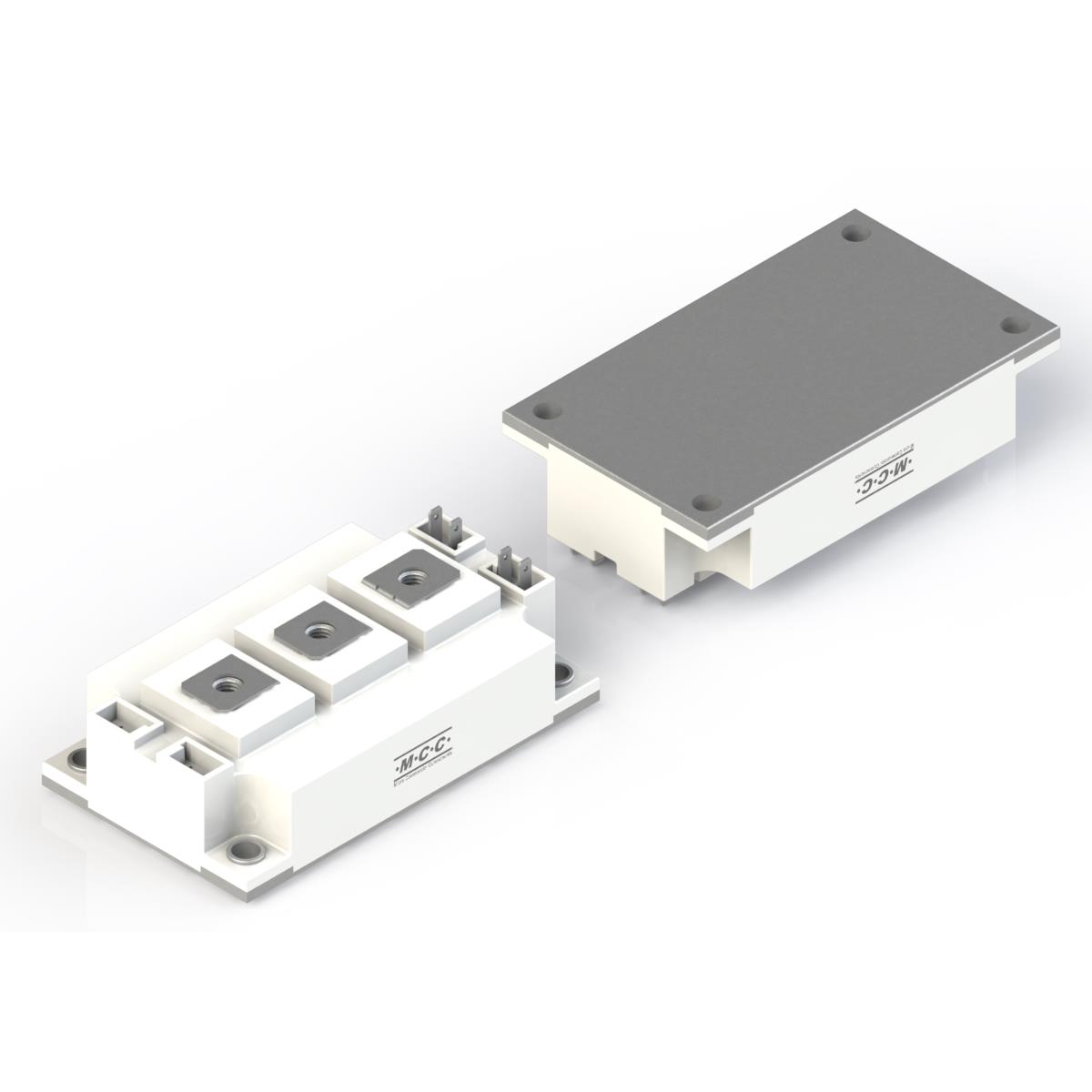

The MIF600R12C2TL-BP is an IGBT module manufactured by Micro Commercial Components (MCC). It features a maximum collector-emitter voltage (VCEO) of 1.2 kV and a gate-emitter maximum voltage of 20 V. The component operates within a temperature range from -40°C to +150°C. Designed for screw mount installation, it belongs to the Discrete and Power Modules sub-category under IGBT Modules.
Feature Summary
- High voltage capability with 1.2 kV collector-emitter rating
- Wide operating temperature range suitable for demanding environments
- Screw mount installation style for secure mechanical attachment
Applications
- Industrial power conversion systems
- Motor drive applications
- Inverter circuits
Procurement Notes
Verify authenticity through authorized MCC distributors or official channels. Confirm part number accuracy against datasheet specifications. Check for restricted supply status as indicated by current availability data. Ensure proper handling procedures are followed due to sensitive semiconductor nature.
Selection Notes
Select based on required 1.2 kV blocking voltage and thermal management needs up to 150°C. Consider screw mount compatibility with existing heatsink infrastructure. Evaluate gate drive requirements against the 20 V maximum limit. Compare with other modules in the MIF series for specific current ratings if higher capacity is needed.
Part Context
This module is part of the MIF series from Micro Commercial Components, designed for high-power switching applications. It shares common packaging and mounting characteristics with other variants in the family, such as the MIF150R12C2TL-BP, differing primarily in current handling capabilities while maintaining similar voltage and thermal specifications.
