Product Detailed Parameters
- Description：IGBT MODULES 1200V 25A, E1
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- IGBT Type：-
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.25V @ 15V, 25A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：E1
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：25 A
- Power - Max：166 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：1.45 nF @ 25 V
Download product information
Overview

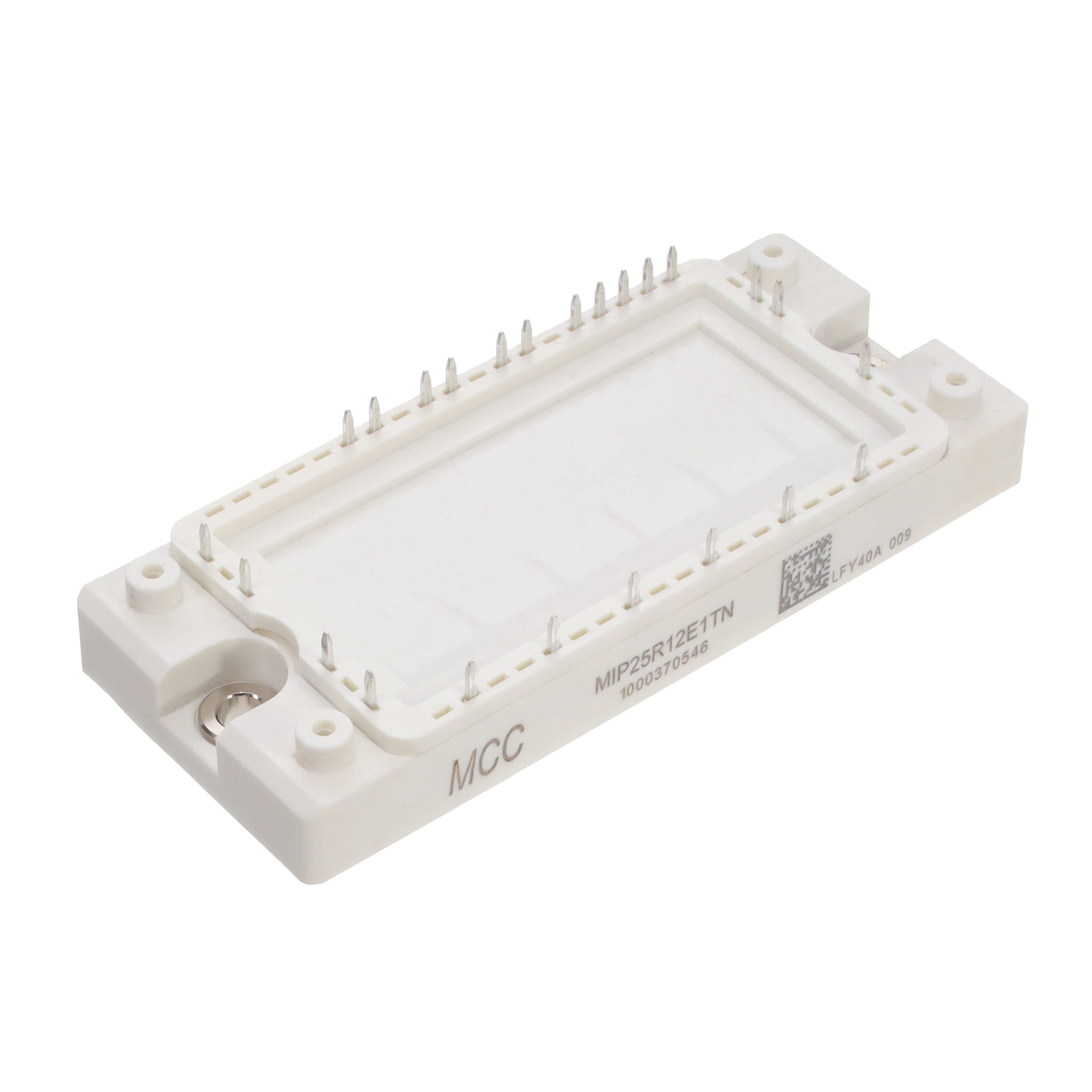

The MIP25R12E1TN-BP is a 1200V, 25A IGBT module featuring an integrated fast and soft recovery anti-parallel freewheeling diode. It includes a built-in NTC thermistor for thermal monitoring. The device offers low switching losses, a positive temperature coefficient for Vce(sat), and high short-circuit capability of 10μs at 100A. Key electrical parameters include a collector-emitter saturation voltage of 1.90V typ at 25A/25°C, gate threshold voltage of 5.9V typ, and total power dissipation of 166W. Thermal resistance from junction to case is 0.90 K/W for the IGBT inverter configuration.
Feature Summary
- Low switching losses and low Vce(sat) with positive temperature coefficient
- Integrated fast and soft recovery anti-parallel freewheeling diode
- High short circuit capability up to 10 microseconds
- Built-in NTC thermistor for precise junction temperature monitoring
Applications
- Motor Drivers
- AC and DC Servo Drive Amplifier
- UPS (Uninterruptible Power Supplies)
Procurement Notes
Verify authenticity by purchasing directly from Micro Commercial Components or authorized distributors to avoid counterfeit parts. Ensure the ordering suffix 'BP' corresponds to bulk packaging containing 8 pieces per box. Confirm RoHS compliance via the 'P' suffix designation. Check datasheet revision Rev.4-1-12012023 for latest specifications. Validate component markings against official documentation upon receipt.
Selection Notes
Select this module for applications requiring 1200V blocking voltage and 25A continuous current. Consider the 175°C maximum junction temperature for high-thermal environments. Evaluate thermal resistance values for heatsink design. Verify gate drive requirements match the specified VGE range. Assess short-circuit withstand time needs against the 10μs limit.
Part Context
This component belongs to the MIP series of IGBT modules from Micro Commercial Components. It integrates an IGBT switch with a complementary diode and an NTC sensor. The module is designed for power conversion and motor control applications. It utilizes epoxy meeting UL 94 V-0 flammability ratings. The package includes multiple terminals for low-inductance connections.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided datasheet. Engineers should verify pin compatibility, voltage/current ratings, and thermal characteristics when considering alternative components from other manufacturers.
