Product Detailed Parameters
- Description：IGBT MODULES
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR)
- IGBT Type：-
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 35A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：35 A
- Power - Max：227 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：2250 pF @ 25 V
Download product information
Overview

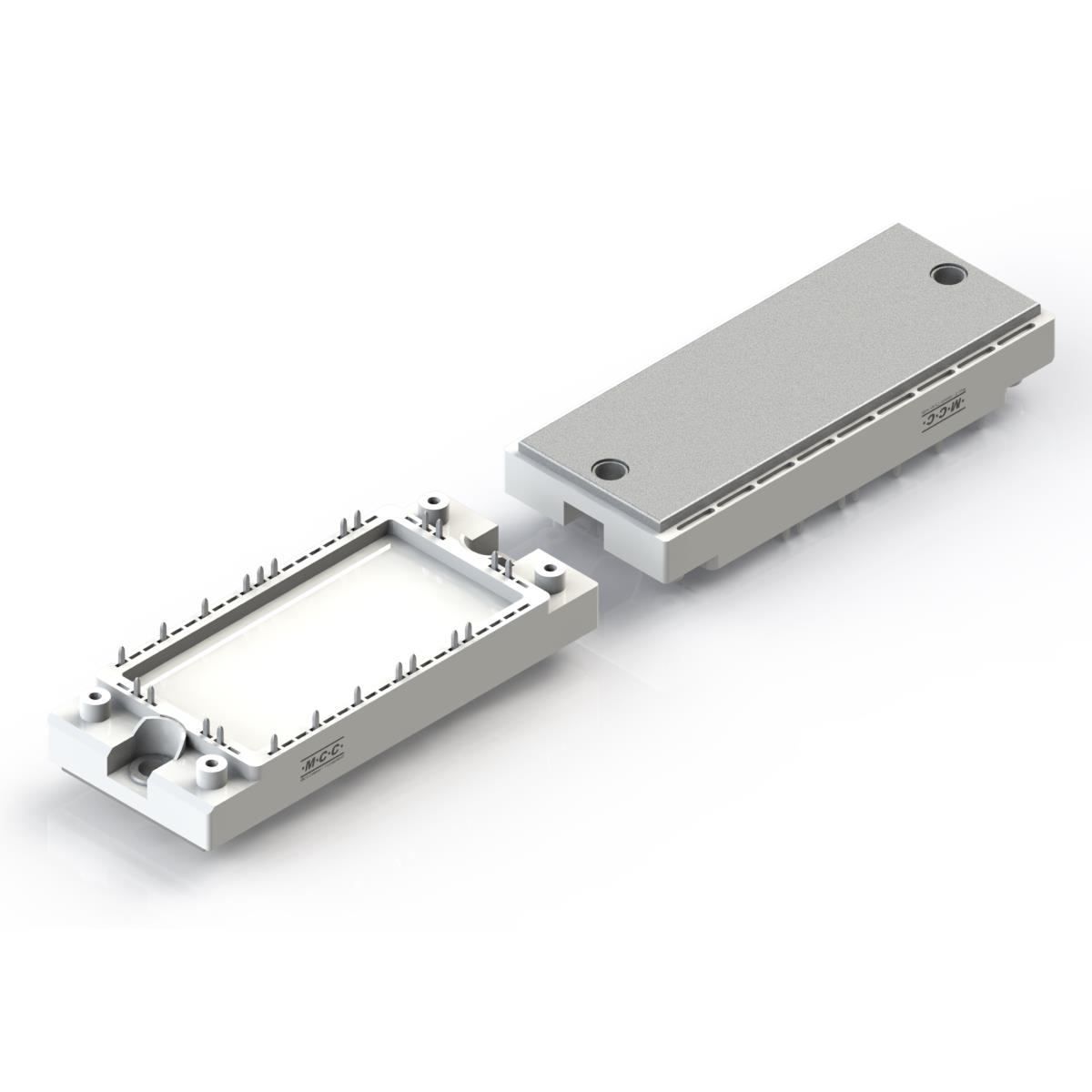

The MIP35R12E1ATN-BP is a silicon IGBT module manufactured by Micro Commercial Components (MCC). It features a 1200V collector-emitter voltage rating and a continuous collector current of 35A. The device integrates an anti-parallel fast and soft recovery freewheeling diode. Key electrical parameters include a maximum junction temperature of 175°C, a short-circuit capability of 180A for 10μs, and a total power dissipation of 227W at 25°C case temperature. The module includes an NTC thermistor with a rated resistance of 5kΩ.
Feature Summary
- Low switching losses combined with low saturation voltage exhibiting a positive temperature coefficient
- Integrated fast and soft recovery anti-parallel freewheeling diode
- High short circuit capability supporting 10μs pulses
- Low inductance case design
Applications
- Motor Drivers
- AC and DC Servo Drive Amplifier
- Uninterruptible Power Supplies (UPS)
Procurement Notes
Verify the authenticity of the MIP35R12E1ATN-BP component through authorized MCC distributors to avoid counterfeit parts. Ensure the packaging matches the specified bulk quantity of 8 pieces per box. Confirm that the ordering suffix BP corresponds to the correct packing configuration as defined in the official datasheet.
Selection Notes
Select this module for applications requiring high thermal stability and robust short-circuit protection. The integrated NTC thermistor facilitates precise junction temperature monitoring. Verify that the gate drive requirements align with the specified threshold voltage and charge parameters for optimal switching performance.
Part Context
This component belongs to the MIP35R12E1ATN series of IGBT modules from Micro Commercial Components. It is designed for medium-power switching applications. The specific part number indicates the inclusion of the BP packing suffix, which denotes the bulk packaging format containing 8 units per box.
Replacement Considerations
Consult the official MCC datasheet for verified substitute part numbers within the same product family. Do not assume functional equivalence with generic IGBT modules without verifying pinout compatibility and electrical ratings.
