Product Detailed Parameters
- Description：IGBT DISCRETE
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- IGBT Type：-
- Configuration：Three Phase Inverter with Brake
- Vce(on) (Max) @ Vge, Ic：1.82V @ 15V, 35A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：P3S
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：35 A
- Power - Max：215 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：2500 pF @ 25 V
Download product information
Overview

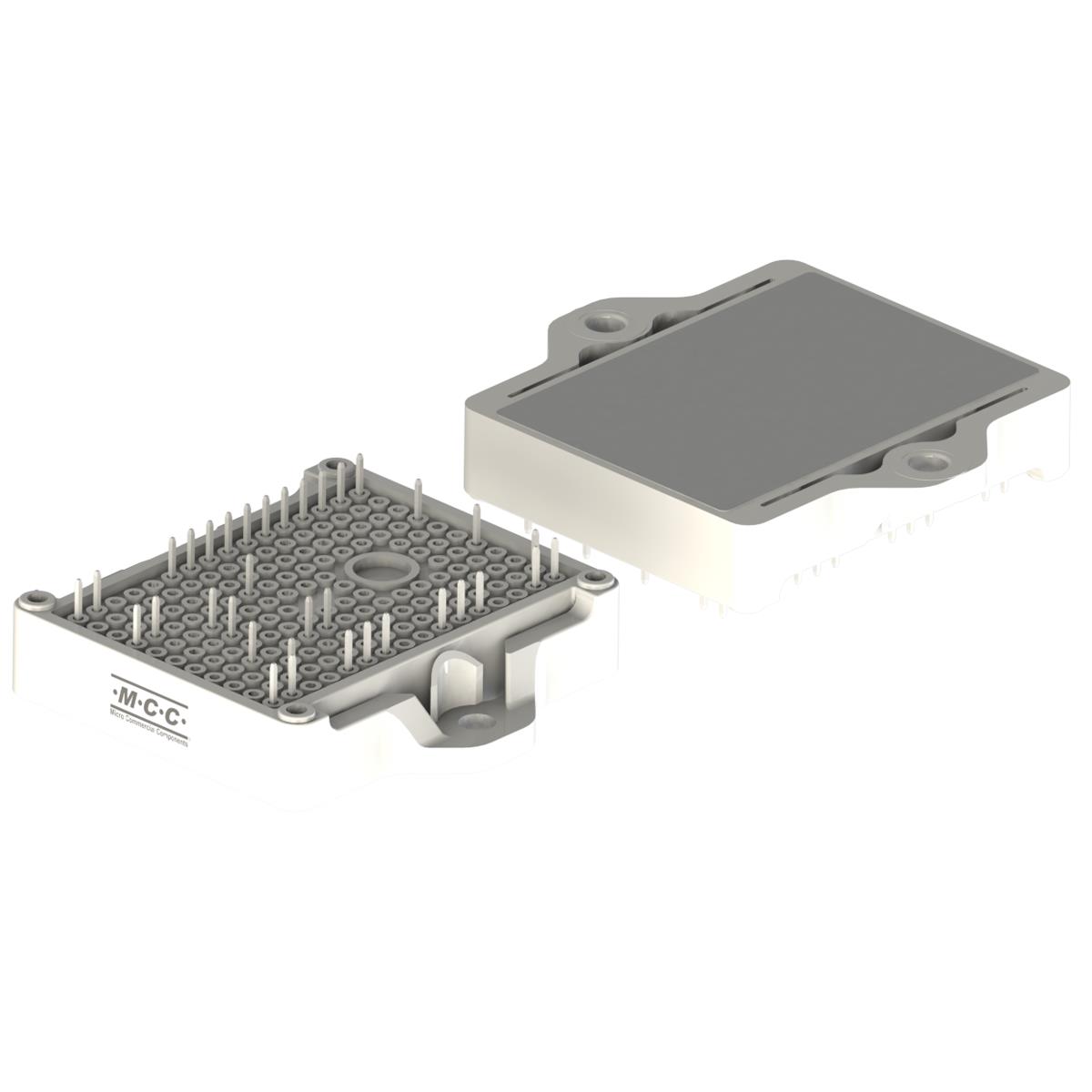

The MIP35R12P3STN-BP is a three-phase inverter module with brake functionality manufactured by Micro Commercial Components. It utilizes silicon technology and features a chassis mount package. The device supports a collector-emitter voltage of 1200 V and a continuous collector current of 35 A. Maximum power dissipation is rated at 215 W, with an operating junction temperature range from -40°C to 150°C.
Feature Summary
- Integrates three-phase input rectifier and inverter functions within a single PIM structure
- Includes integrated braking capability for motor control applications
- Designed for chassis mounting to facilitate thermal management
Applications
- Three-phase motor drives
- Industrial inverter systems
- Variable frequency drive (VFD) units
Procurement Notes
Verify the specific suffix BP against official MCC documentation to confirm material composition and environmental compliance status. Ensure that the chassis mount interface matches the mechanical constraints of the target assembly. Cross-reference the active part status with current manufacturer production notices to avoid obsolescence risks during procurement.
Selection Notes
Select this component when a compact solution combining rectification, inversion, and braking is required. The 1200 V rating suits medium-voltage industrial networks. Evaluate thermal resistance requirements against the 215 W dissipation limit. Confirm that the P3S package dimensions align with the available chassis space and cooling infrastructure.
Part Context
This module belongs to the MIP series of discrete power modules from Micro Commercial Components. It serves as a complete power stage for AC-DC-AC conversion systems. The design consolidates multiple semiconductor functions into a single housing to reduce board space and interconnection complexity in high-power density applications.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing gate drive circuits and thermal interfaces before considering alternative sources or pin-compatible alternatives from other manufacturers.
